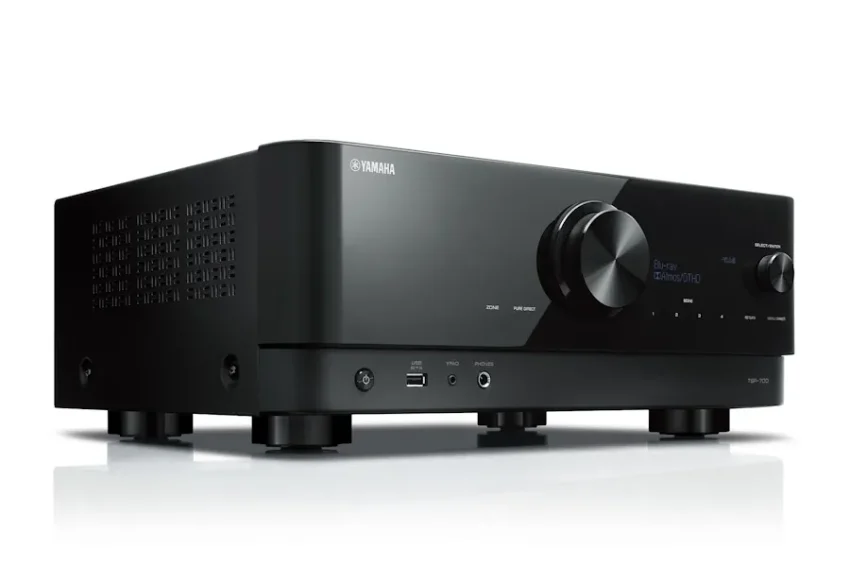

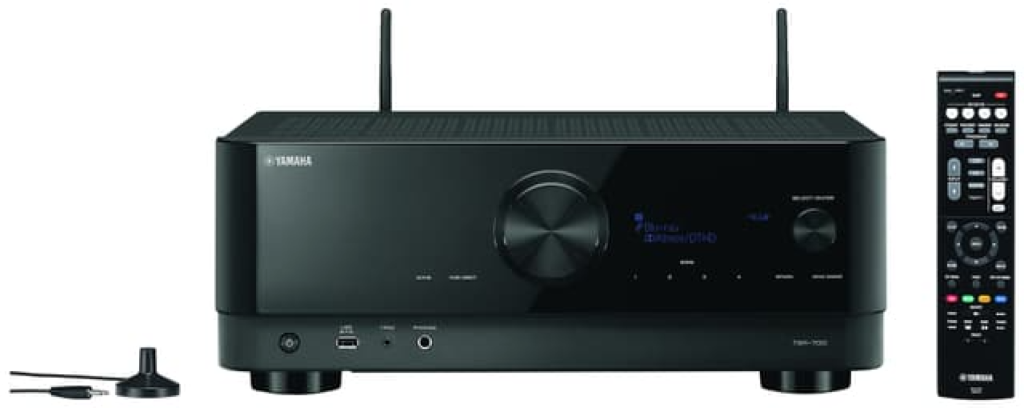

7.2-kanalig AV-receiver med CINEMA DSP 3D, HDMI™ med 7 ingångar/1 utgång och trådlöst surroundljud.
| Artikelnr: | TSR700 |
| Standardlager: | I Lager (2) |
Varumärke
| Kanaler | 7.2 | |
|---|---|---|
| Rated Output Power (1kHz, 1ch driven) | 125 W (8 ohms, 0.9% THD) | |
| Rated Output Power (20Hz-20kHz, 2ch driven) | 100 W (8 ohms, 0.06% THD) | |
| Maximum Effective Output Power (1kHz, 1ch driven) | 150 W (8 ohms, 10% THD) | |
| High Slew Rate Amplifier | Yes | |
| Surround Sound Processing | Surround:AI | N/A |
| Cinema DSP | Yes | |
| DSP Programs | 17 | |
| Dialog Level Adjustment | Yes | |
| Virtual Presence Speaker | Yes | |
| Virtual Surround Back Speaker | Yes | |
| Dialogue Lift | Yes | |
| SILENT CINEMA/Virituell CINEMA DSP | Yes | |
| Dolby Atmos | Yes | |
| Dolby Atmos Height Virtualizer | Yes | |
| Dolby TrueHD | Yes | |
| Dolby Digital Plus | Yes | |
| Dolby Surround | Yes | |
| DTS:X | Yes | |
| DTS-HD Master Audio | Yes | |
| Audio Features | File Format | MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz |
| Pure Direct | Yes | |
| Compressed Music Enhancer | Yes | |
| High-resolution Music Enhancer | N/A | |
| YPAO multi-point measurement | Yes | |
| YPAO Volume | Yes | |
| Reglerbar DRC (Dynamic Range Control) | Yes | |
| Initial Volume & Maximum Volume Setting | Yes | |
| A.R.T. Wedge | N/A | |
| Bi-amp capability | Yes | |
| Audio Delay | Yes (0-500 ms) | |
| DA Converter | 384 kHz / 32-bit BB PCM5102A | |
| Video Features | HDMI eARC | Yes |
| HDMI Audio Return Channel | Yes | |
| HDMI Pass-through | 8K60B, 4K120AB, 24GBPS *HDMI1-3 | |
| HDMI Up-scaling | Yes up to 4K | |
| HDMI Up-conversion | N/A | |
| Dolby Vision | Yes | |
| HDR 10+ | Yes | |
| VRR/ALLM | Yes/Yes | |
| Video adjustment | N/A | |
| Connectivity | MusicCast Surround | Yes |
| HDMI Ingångar/Utgångar | 7 / 1 | |
| HDMI CEC | Yes | |
| USB Input | Yes | |
| Network Port | Yes | |
| Wi-Fi | Yes (2.4 / 5 GHz) | |
| AirPlay 2 | Yes | |
| Bluetooth | Yes (SBC / AAC) | |
| Front AV Input | USB | |
| Digital Audio Input/Output: Optical | 1 / 0 | |
| Digital Audio Input/Output: Coaxial | 1 / 0 | |
| Analog Audio Input/Output | 4 / 0 | |
| Phono Ingång | Yes | |
| XLR Terminal | N/A | |
| Component Video Input/Output | N/A | |
| Composite Video Input/Output | N/A | |
| Preout | 2.2-ch | |
| Headphone Output | 1 | |
| Tuner Section | FM/AM radio | Yes (Availability varies by region.) |
| DAB Tuner | Yes (Availability varies by region.) | |
| User Interface | On-screen display | Graphical User Interface |
| SCENE | Yes (8 sets) | |
| App Control | Yes (iPhone / iPad / Android phone / tablet) | |
| Web Browser Control | Yes | |
| Fjärrkontroll | Yes | |
| Zone Control | Ljudutgångar för Zon 2 | Preout |
| Ljudutgångar för Zon 3 | N/A | |
| Ljudutgångar för Zon 4 | N/A | |
| Powered Zone | Zone 2 | |
| Zone Video Output | N/A | |
| Zone B Output | N/A | |
| Zone GUI | N/A | |
| RS-232C port | N/A | |
| +12V Trigger utgångar | 1 | |
| IR ingångar för fjärrstyrning | N/A | |
| Party Mode | Yes | |
| General | Standby Power Consumption (IR only) | 0.1 W |
| Auto Power Standby | Yes | |
| ECO mode | Yes | |
| Storlek (B x H x D) | 435 W x 171 H x 377 D mm (with antenna up:435W x 245H x 377D mm);17-1/8"W x 6-3/4"H x 14-7/8"D (with antenna up:17-1/8"W x 9-5/8"H x 14-7/8"D) | |
| Vikt | 9.8 kg; 21.6 lbs |
