Kenwood DMX5020BTS Apple Carplay & Android Auto

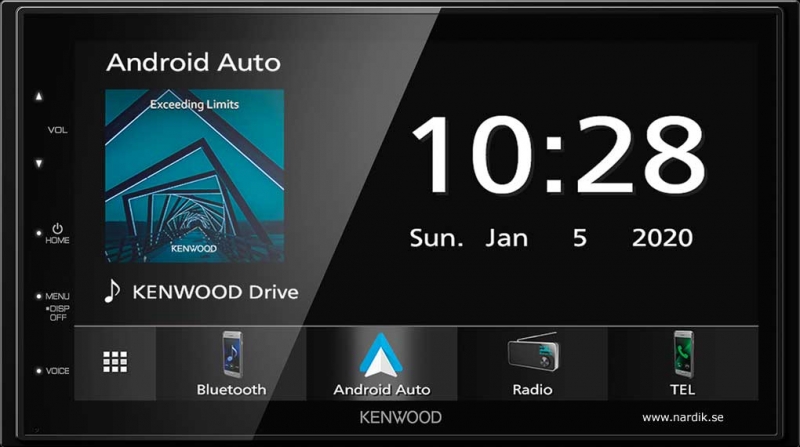

• 6.8" WVGA Capacitive Touch screen - White Key Illumination

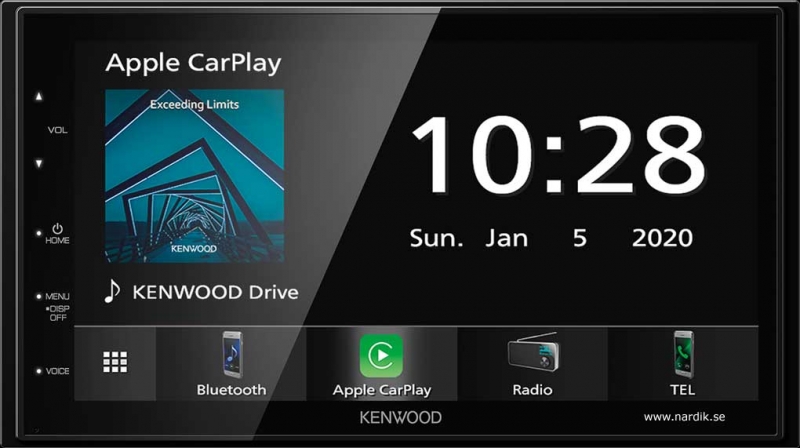

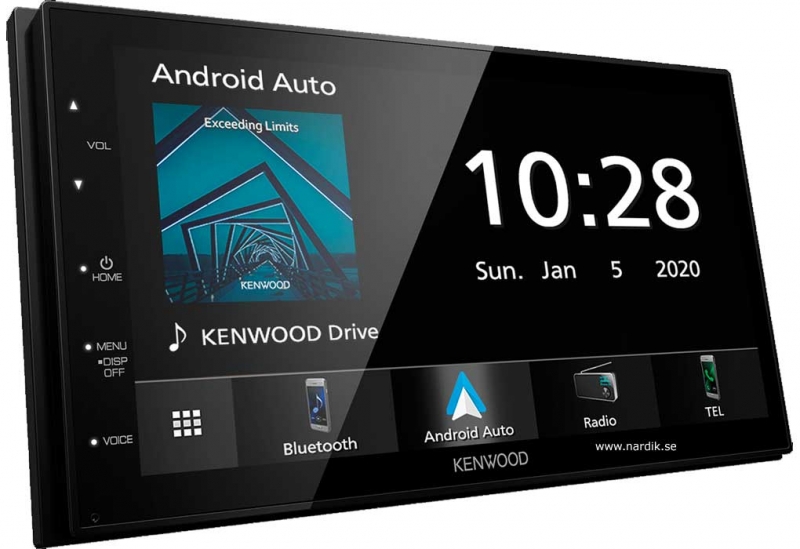

• Apple CarPlay® & Android Auto™ Ready
• Android USB Mirroring Ready
• Built-in Bluetooth
• Bluetooth wireless music browsing ready
• 2 Preouts + subwoofer (2.0V)
• 13 Band EQ - DSP - DTA Built-in
• AV-in or Camera-in (Selectable) / AV-out
• Rear Camera input with built-in parking guide lines

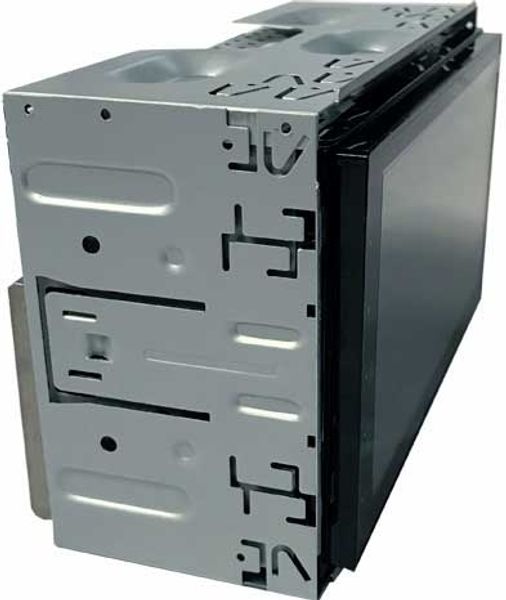

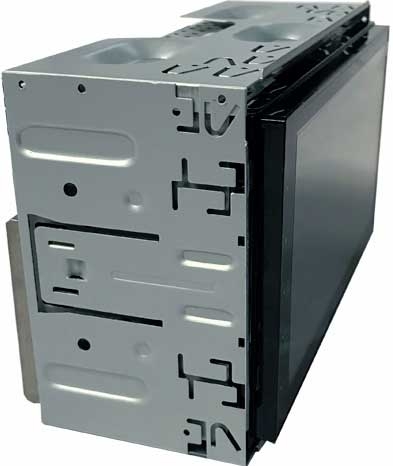

• Short Chassis for easy installation

General Features

• DIN Size 2 DIN
• Smooth GUI
• Selectable GUI Background Wallpaper
• Key Illumination White color
• Back-up Memory
• Attenuator with Smooth Volume Return
• Touch Sensor Tone
• Optional IR remote controller, (KNA-RCDV331)
• Digital Clock (24H)
• ISO connector
• Built-in Bluetooth
• Made for iPod
• Works with Apple CarPlay
• Works with Android Auto
• Android USB Mirroring
• Firmware upgradable

Monitor Features

• Screen Type 6.8" Wide VGA
• Display Mode 4 Mode (Full/Zoom/Normal/Auto)
• Screen Adjustments Brightness / Tint / Color / Contrast
• Dimmer function Manual/Sync
• Dimmer Level
• Visual Source Mode Mirroring / CarPlay / Android Auto.
• Display Type Glare
• Display film Anti Fingerprint
• Display Panel Capacitive
• Mechanism type Fixed
• NTSC/PAL judge (Auto)
• Display Off Mode

Multimedia GUI Features

• OSDC Type Graphic
• Menu text 14 languages:

o   ► English(UK)(Default)
o   ► English(US)
o   ► Spanish
o   ► French
o   ► German
o   ► Italian
o   ► Dutch
o   ► Russian
o   ► Portuguese
o   ► Hebrew
o   ► Greek
o   ► Polish
o   ► Czech
o   ► Hungarian

• Software updates (SoC)
• Demonstration Mode
• Top Menu Customize
• Opening Screen Type standard
• Background Customize 6 x presets + 2 x user set
• R-CAM interrupt
• R-CAM Parking Guide Lines

Tuner Features

• Station Select Manual / Preset (List)
• FM Reception
• AM (MW/LW) Reception
• Tuner Presets (FM/AM) 20 Presets (15FM / 15AM)
• Tuning mode Auto1/Auto2/Manual
• Up/Down Seek/Scan
• Automatic Memory Entry (AME)
• FM Stereo / Mono Selector
• Radio Data System
• Radio Text Plus
• Traffic Information
• Local search
• AF Regional Selectable: AF/AF Reg/OFF
• Enhanced Other Networks Function (EON)
• Program Type Function (PTY)

Bluetooth General Features

• Hands Free Profile (HPF) V1.6
• Hands Free Profile with High Sound Quality HFP V1.6
• Audio Streaming (A2DP), (SBC/AAC)
• Serial Port Profile (SPP)
• Simple Secure Pairing (SSP)
• Phonebook Access Profile (PBAP)
• Generic Access Profile (GAP)
• Service Discovery Profile (SDP)
• Audio/Video Remote Control Profile (AVRCP), V1.5
• Catchphone / Call Waiting
• Private mode
• Alphabet Search (Phonebook)
• Voice Control
• Noise Canceller
• Echo Canceller
• Signal strength display
• Remaining battery display
• Bluetooth Paring Indicator

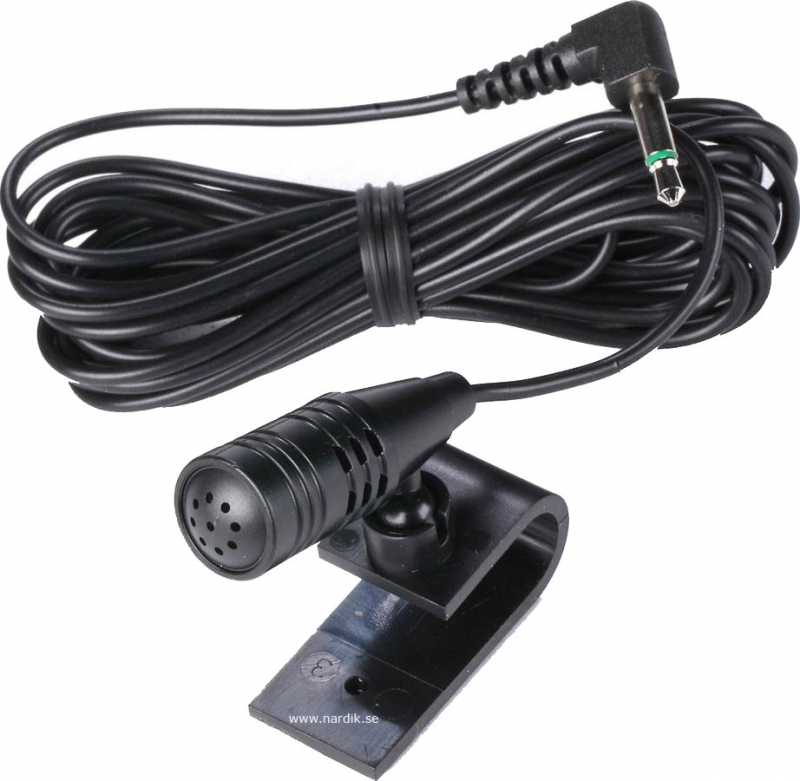

• High-quality noise canceling microphone included
• Bluetooth firmware upgradeable, Included in system updates

CE_Playable Audio File

• AAC (*.aac) files are playable USB
• MP3 files are playable USB
• WMA (.wma) files are playable USB
• WAV (.wav) files are playable USB
• FLAC files are playable USB

CE_Playable Video File

• MPEG1/2 files are playable USB
• MPEG4 files are playable USB
• WMV files are playable USB
• H.264 files are playable USB
• mkv files are playable USB
• JPEG files are playable USB

USB Features

• USB terminal - rear side / 1m cable / fix
• USB Type 2.0 High speed
• Works with Android Auto
• Works with Apple CarPlay
• USB Mirroring for Android install "Mirroring OA for KENWOOD" from Playstore
• Repeat Play Folder/File/All
• Random play Folder
• Category search
• Link Search
• Resume play
• Time code display
• 1,5A Smartphone Quick Charge

Audio Features

• Max. Output Power (MOSFET Power IC) 4 x 45W
• Pre-out 2 RCA: FRONT/REAR + SUB(mono)
• Pre-out Output Level 2V
• Volume Offset
• Balance/Fader Control
• Att.(-20dB) with smooth Volume Return
• Equalizer Yes, 13 Band Graphic EQ
• Digital Sound Processor (DSP)
• Digital Time Alignment (DTA)
• Beep On/Off

Multimedia DSP Features

• Car type control

o   ► Off
o   ► Compact
o   ► Sedan
o   ► Wagon
o   ► Minivan
o   ► SUV
o   ► Passenger Van

• Speaker Size & Location Control
• X'over network 2-way X'over / HPF / LPF
• Listening position control / Time Alignment
• Equalizer type Graphical
• Equalizer 13-Bands
• Equalizer presets / User set 7 presets / 4 User set
• Balance & Fader Control
• Source Volume Offset source independent
• Sound Effects

o   ► Off
o   ► Compact
o   ► Sedan
o   ► Wagon
o   ► Minivan
o   ► SUV
o   ► Passenger Van

• Audio Setup Memory

Video Features

• Audio Video Output, Video only (RCA)
• Audio/Video Input, AV-input or Camera input (Selectable)
• Video-In for Rear-view Camera 1 dedicated video input (RCA)
• Detection Mode Rear View Camera Reverse sensor wire
• Parking Guide Line

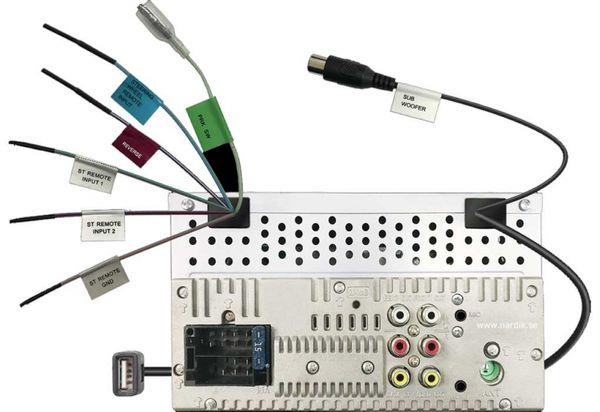

Connectivity

• OEM Wired Remote Control Ready - Optional interface needed
• Programmable OEM Steering Wheel Remote Function
• Parking sensor (handbrake) wire
• Power Control (P.CON) wire
• Dimmer control wire
• Preout 2 x RCA (Front/rear) + Sub (mono)
• AV-Input 1x mini-jack (selectable: AV-in / Camera-in)
• Video Out RCA x1
• Reverse sensor wire
• Rear View Camera Input Dedicated RCA Video-in
• FM Antenna Input JASO connector
• External microphone input 3,5mm mini-jack

Tuner Specifications

• FM range: 87.5Mhz - 108MHz (50Khz step)
• FM Usable Sensitivity 1.8μV/75ohm (S/N 30dBf)
• FM Frequency Response 30Hz ~ 14kHz (± 3dB)
• FM Signal to noise ratio (Mono) 50dB
• FM Stereo Separation (1kHz) 35dB
• MW range: 531kHz - 1611kHz (9kHz step)
• MW Usable Sensitivity 99μV

Bluetooth Specifications

• Technology Bluetooth V4.1
• Frequency 2.402 - 2.48 GHz
• Output power +8dBm(max), power class 1
• Maximum range Line of sight approx. 10 meter
• Handsfree profile (HFP), V 1.6
• Serial port profile (SPP)
• Advanced audio distribution profile (A2DP)
• Audio Codec SBC/AAC
• Phonebook access profile (PBAP)

USB Specifications

• USB Version compatibility USB 2.0 High Speed
• File System FAT 16/32, exFAT
• Maximum Supply current 1500mA
• D/A Converter 24bit
• Video Decoder MPEG1/2/4, WMV, H.264, mkv
• Audio Decoder MP3, WMA, AAC, WAV, FLAC

Audio Specifications

• Maximum Power 45W x 4
• Output Power (DIN45324,+B=14.4v) 21W x 4
• Output frequency band 20Hz ~ 20kHz
• Preout Level 2000mV / 10kOhm,
• Preout Impedance ≤ 1400Ohm
• Speaker Impedance 4Ohm ~ 8Ohm

DSP Specifications

• Frequency band - Front 62.5Hz ~ 16kHz
• Equalizer Gain –9db ~ +9db
• 2-Way X'over / Front/Rear (HPF) / Frequency trough/30/ ... /220/250Hz
• 2-Way X'over / Front/Rear (HPF) / Slope -6/-12/-18/-24 (dB/oct)
• 2-Way X'over / Subwoofer (LPF) / Frequency 30/40/ ...250Hz/Through
• 2-Way X'over / Subwoofer (LPF) / Slope -6/-12/-18/-24 (dB/oct)
• Position: 2-Way (Front/Rear/Sub) Delay 0cm ~ 610cm (1cm step)
• Subwoofer Level -40dB ~ 6dB
• Equalizer Type   Graphic
• Frequency band 13 bands

Video Specifications

• Color System of External Video Input NTSC/PAL
• External video input level (mini-jack) 1 Vpp / 75 Ohm
• External Audio Max. Input Level (RCA) 1.5 V / 25 kOhm

Monitor Specifications

• Screen size (Diagonal) 6.75"
• Screen Size (WxH) 151.8 x 79.7mm
• Display system Transparent TN LCD Panel
• Drive system TFT Active Matrix System
• Number of Pixels 1152000pixels (800(H) x 480(V) x RGB)
• Effective pixels 99.99%
• Pixel arrangement RGB Striped
• Back lighting LED (Light Emitting Diode)

General Specifications

• Operating voltage 14.4V (10.5 ~ 16V Allowable)

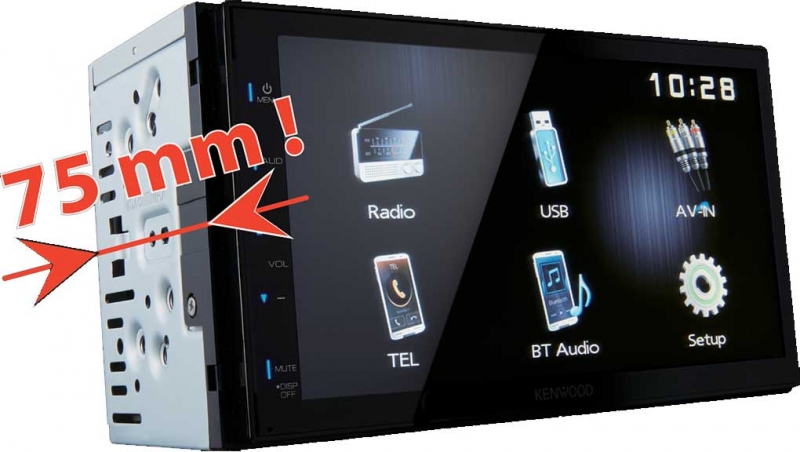

• Dimensions (WxHxD) 178 x 100 x 75mm
• Weight 1.1 Kg.

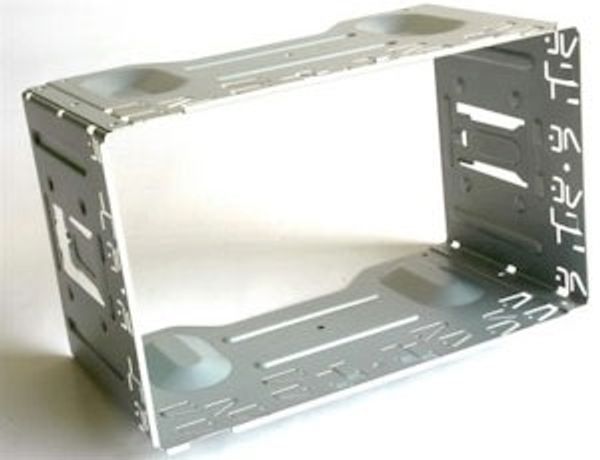

• Weight, including sleeve & escutcheon 1.3 kg
