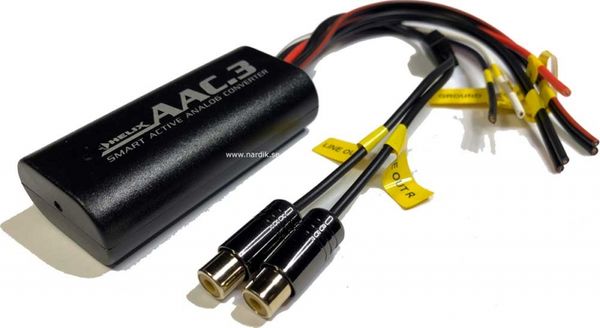

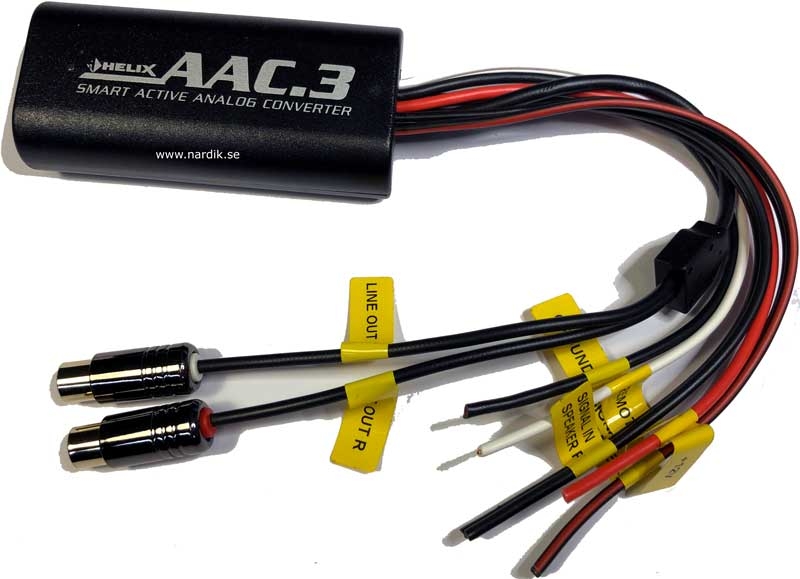

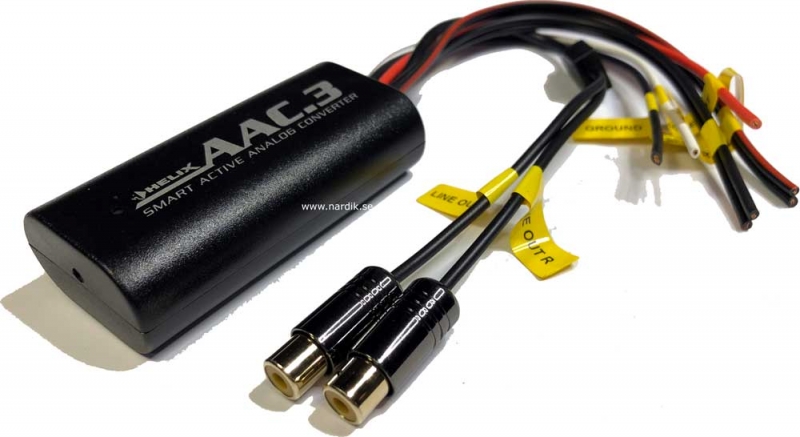

Helix AAC.3


Aktiv hög till lågnivå omvandlare med autostart. Mycket hög ljudkvalité.4 Volt ut. Utvecklad och anpassad för dagens bilar. Pris för 1 styck

Artikelnr: AAC3
Standardlager: I Lager (7)



Mer information

När du vill uppgradera ljudet från din original monterade bilstereo men t.ex slutsteg och baslåda.
 - Anslut denna signalomvandlare (hög till lågnivå) för att generera en stereosignal från högtalarsignalen på originalmonterad bilstereo eller fabriksinstallerad förstärkare.
En perfekt matchning för att uppgradera fabriksljudsystem "ADEP.3-krets" till förbikoppling av radiodiagnossystem "Double Activation Circuit" - genererar en +12 V-fjärrsignal på två olika sätt för att slå på & av anslutna förstärkare Utmärkt ljudkvalitet tack vare högupplöst frekvensrespons (18 Hz - 80 kHz). Tillverkad i Tyskland.
 - Helix AAC.3 är inte enbart en mycket välljudande hög till lågnivå omvandlare den är också en problemlösare i många moderna bilar med CAN system så som Audi, BMW, MB, Mazda med flera.

 - För optimal ljudkvalité och funktion finns  2 olika utföranden.
AAC.3 upp till
16 Vrms (= 65 Watts / 4Ω)
AAC.3HP upp till
25 Volts (= 155 Watts / 4Ω)

- Mer info
The integration of car hifi components into existing OEM sound systems becomes more and more challenging as today's factory radios either lack of preamplifier outputs or incorporate intelligent speaker diagnosis features. That's where the new Helix AAC.3 comes into play.

The smartest high-low converter in its class
Forget about error messages or loss of features (e.g. the fader) - the integrated ADEP.3 circuit cleverly "bypasses" the speaker diagnosis in factory car radios. Distorted sounds and increased THD which may occur with conventional high-low converters are prevented as well. The good thing is that the ADEP.3 doesn't load the car radio's amp unnecessarily and therefore reduces its current draw by up to 70 %.

Smart signal detection
Its “Double Activation Circuit” generates a +12 V remote signal for turning on connected power amplifiers in two different manners. Either it detects the DC offset on the speaker outputs of the OE car radio or it utilizes an integrated, switchable signal detection with variable sensitivity.
Furthermore the AAC.3 incorporates Audiotec Fischers proprietary "Power Save Mode", which turns off the remote output if no music signal is present for more than 2 minutes. That's really a great advantage as many cars with "CAN" or similar bus architectures keep the radio invisibly "alive" for up to 45 min. even if you have already left the car meanwhile.

High Resolution-ready
The AAC.3 generates a high-quality preamplifier signal out of the speaker output signal of a factory radio or amplifier and thus allows the easy connection of additional power amplifiers. Its wide frequency response of 18 Hz up to 80,000 Hz warrants excellent sound quality and makes this high-low converter ready for High-Res audio reproduction.

  • Allows a simple connection of additional amplifiers to your factory sound system
  • Suitable for all car radios – even those with factory-installed amps
  • “ADEP.3 circuit” for bypassing radio diagnostic systems
  • Microcontroller-controlled monitoring of the music signal and generation of the remote signal
  • “Power Save Mode” – significantly reduces the power consumption of connected amplifiers when no input signal is present (after 2 min.)
  • “Double Activation Circuit” – generates a +12 V remote signal in two different ways to turn on connected amplifiers
  • Excellent sound quality thanks to very wide frequency response (18 Hz - 80 kHz)
  • High-quality, sealed and gold plated RCA / Cinch connectors for lossless signal transmission
Mer info
Språk: Engelska/Tyska
Storlek: 0.5 MB
Max. speaker input level 16 Volts (= 65 Watts / 4Ω)
Input impedance 13Ω
Max. output level 4.0 Volts
Frequency response 8 Hz - 80,000 Hz
Max. current for remote output 200 mA
Operating voltage 7 - 18 Volts
Dimensions (H x W x D)
77 x 37 x 20 mm
Detta ingår i priset

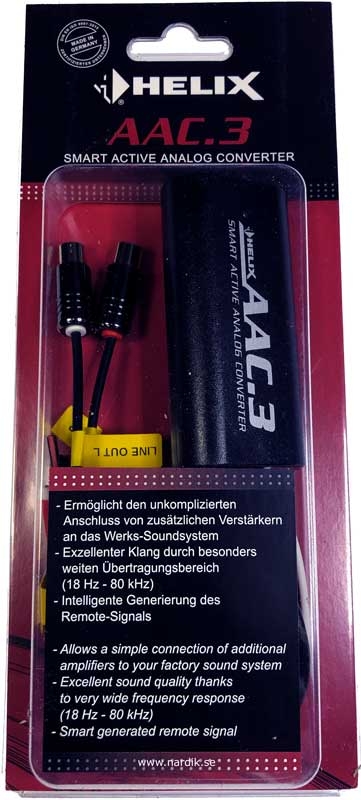

1 x AAC.3
1 x Bruksanvisning på Engelska / Tyska
