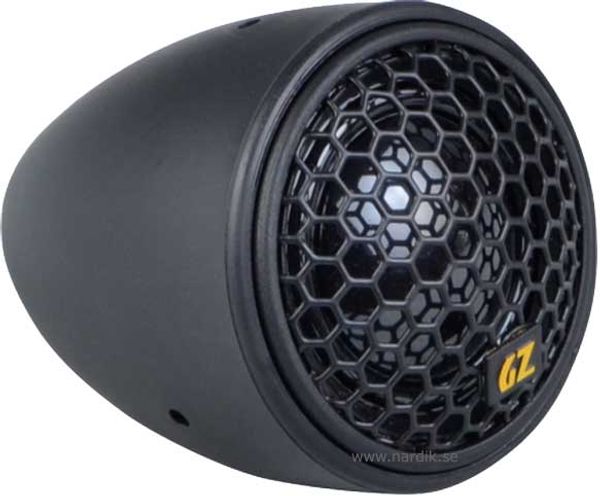

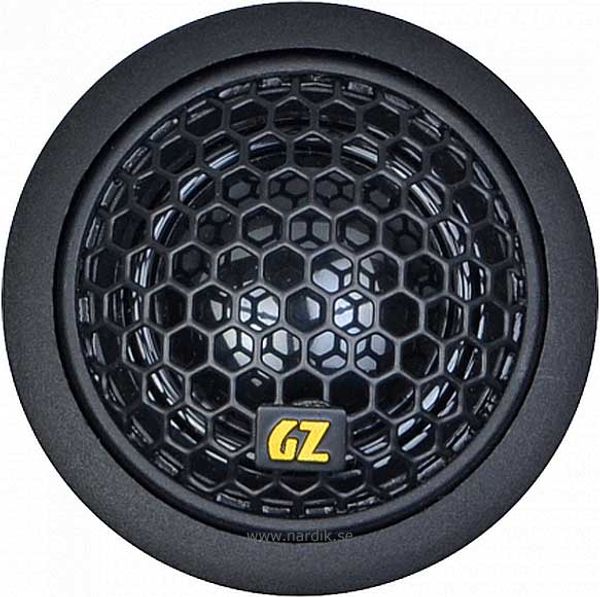

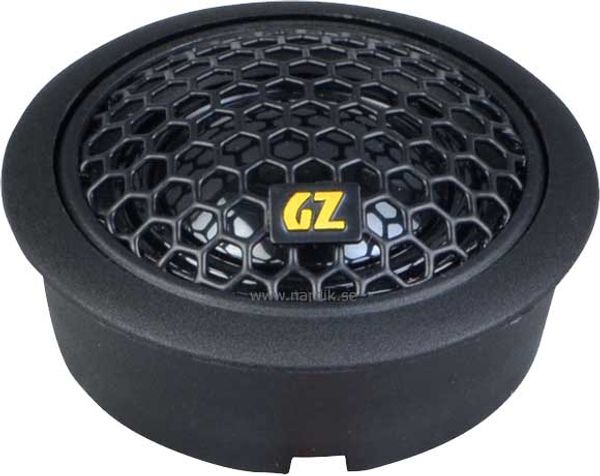

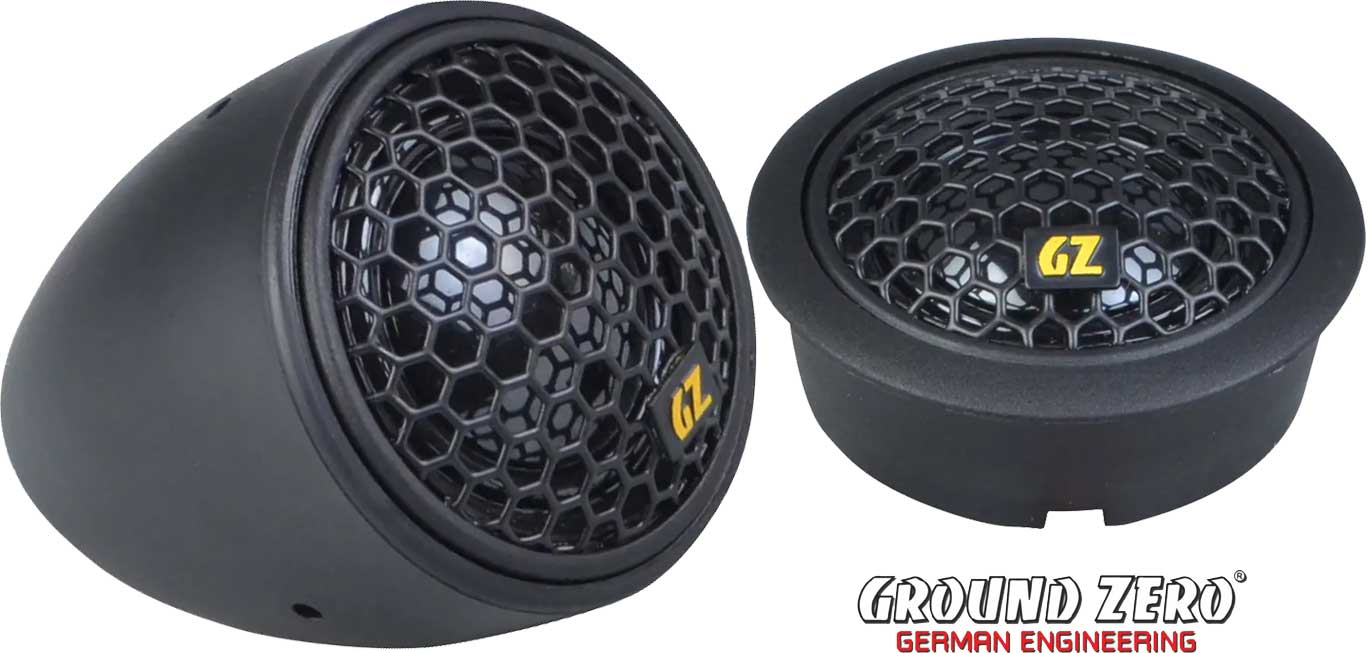

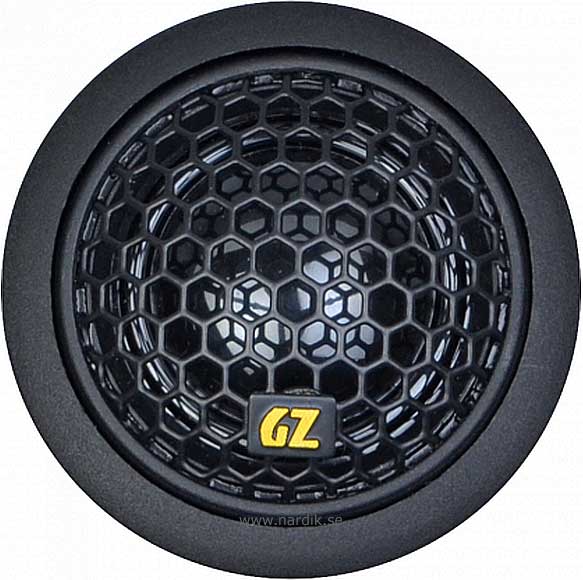

Ground Zero GZCT25SQL 25 mm, 1″ dome tweeter som kam monteras infälld eller utanpåliggande. Levereras med 12 dB/oct high pass filter. KLIPPEL® optimeras
High-performance Mylar dome tweeter
25 mm / 1″ voice coil
Mylar dome
Neodymium motor

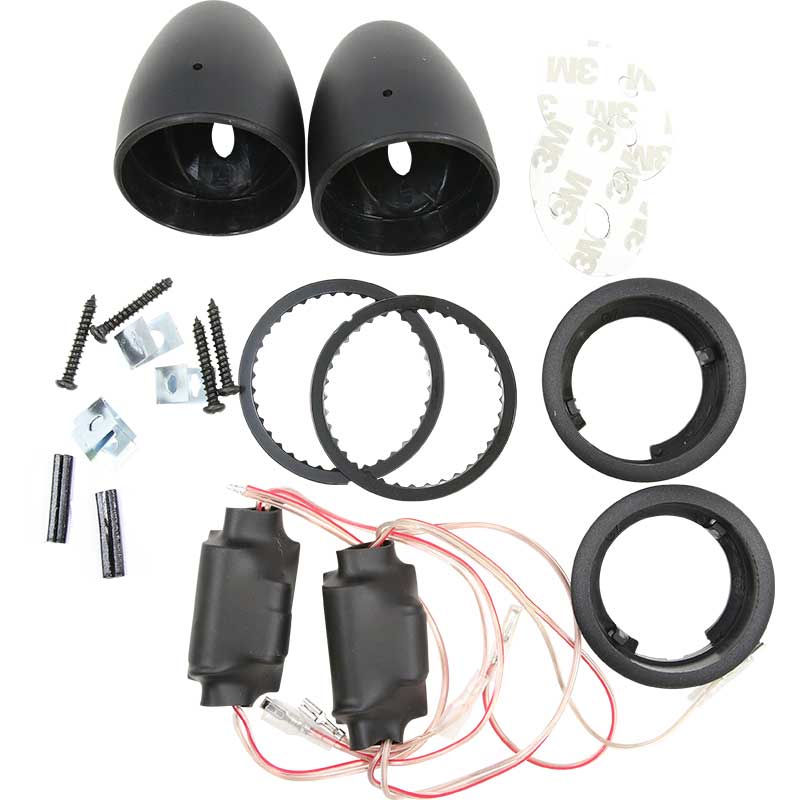

Incl. 12 dB/oct high pass filter
Ferrofluid cooled

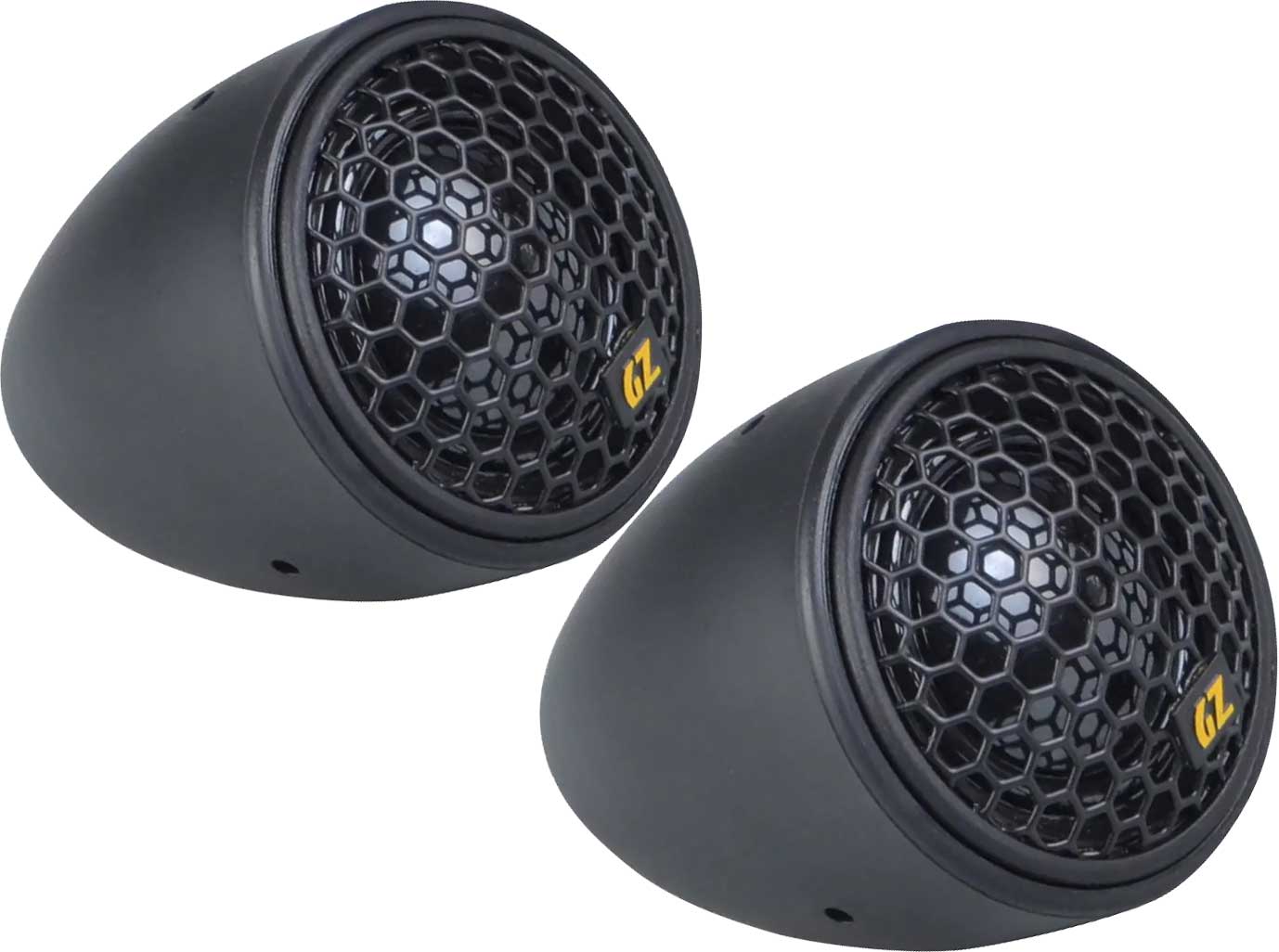

1 pair / package
Verified with KLIPPEL®
Ground Zero is using the worldwide accepted KLIPPEL® R&D Analyzer KA3 measurement system for speaker development during the German in-house development as well as for QC reporting for most production lines at the factory. The results of LPM and LSI measurements are the basis for evaluating and verifying further development enabling to offer perfectly working products in any practical application.
Continuous and advanced trainings for development employees ensure the highest possible qualification.
KLIPPEL® is a registered trademark of KLIPPEL GmbH
High-performance Mylar dome tweeter
25 mm / 1″ voice coil
Mylar dome
Neodymium motor
Incl. 12 dB/oct high pass filter
Ferrofluid cooled
1 pair / package
Verified with KLIPPEL®
Ground Zero is using the worldwide accepted KLIPPEL® R&D Analyzer KA3 measurement system for speaker development during the German in-house development as well as for QC reporting for most production lines at the factory. The results of LPM and LSI measurements are the basis for evaluating and verifying further development enabling to offer perfectly working products in any practical application.
Continuous and advanced trainings for development employees ensure the highest possible qualification.
KLIPPEL® is a registered trademark of KLIPPEL GmbH
Mer information Diskant | |
Manual Språk Engelska/Tyska |
Model High-performance tweeter with Mylar dome
Diameter 25 mm / 0.98″
Power Handling (RMS/max.) 70 / 100 Watts
Impedance 4 Ohms
Efficiency 84 dB
Frequency Response 3000 Hz – 20 000Hz
Crossover Frequency 5500 Hz (Crossover high pass frequency)
Voice Coil 25 mm / 1″
Dome Mylar
Mounting Ø 48 mm / 1.89″
Mounting Depth 16 mm / 0.63″.
