Nyhet

GZNW 152X-D2 4000 Watt 2x2Ω 116 liter

Pris

Lägsta pris senaste 30 dagar 5 490 kr

High performance long excursion subwoofer GZNW 15X-D2 15" subbas. 2500 Watt RMS, 4000 Watt SPL. Dubbla talspolar 2x2Ω. Basreflex låda 116 liter. Lämplig förstärkare 1000-3500 Watt RMS. Klippel® optimized. Pris för 1 styck

Artikelnr:	GZNW15XD2
Standardlager:	Lev 7-10 dagar

Varumärke

Mer information

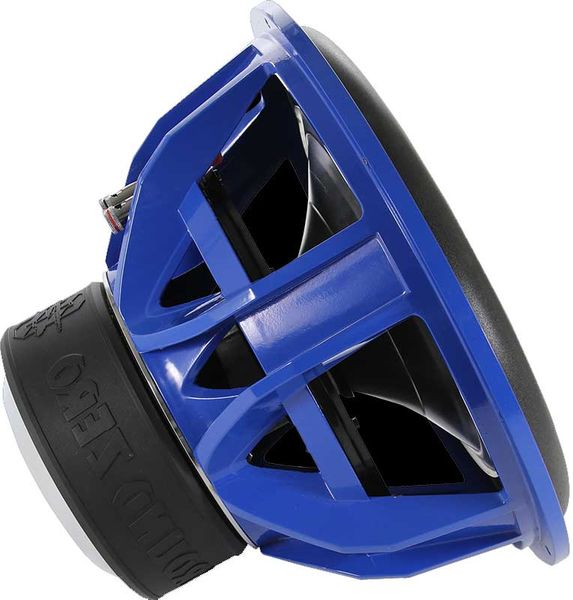

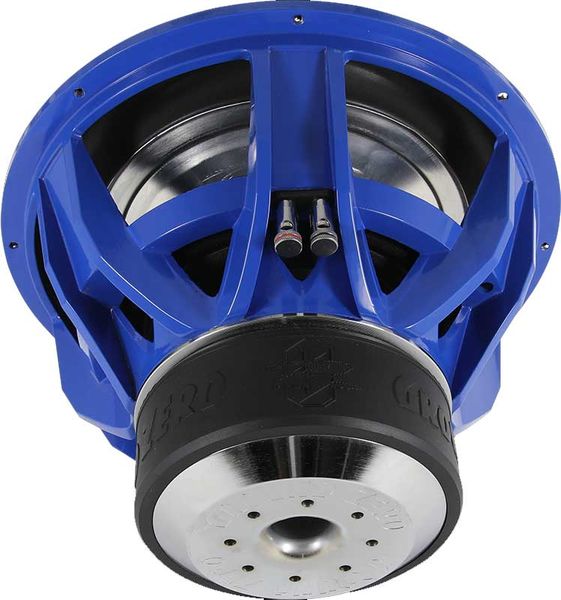

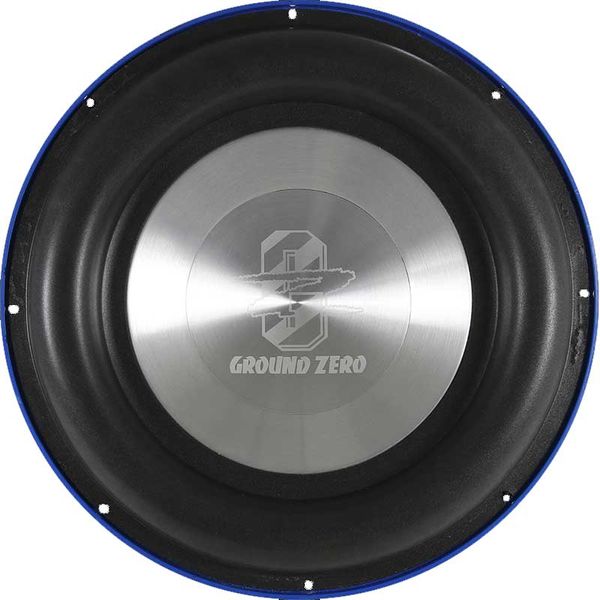

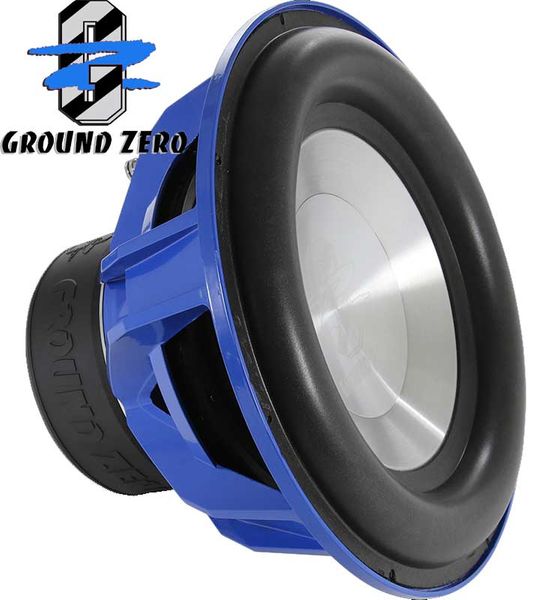

GZNW 15X-D2 Ground Zero The return of the legend, bigger than ever!

The return of the legend, bigger than ever!
Combining the looks of the blue GZNW 12X with modern subwoofer technology and years of experience, Ground Zero creates even bigger long awaited successor.

Features:
- Long excursion subwoofer
- Klippel® optimized
- Aluminum cone & dust cap
- Massive blue aluminum cast basket
- 3” copper voice coil
- High-roll surround
- 4-layer polycotton spider
- Aluminum dust cap

Mer info
Bruksanvisning

Verified with KLIPPEL®
Ground Zero is using the worldwide accepted KLIPPEL® R&D Analyzer KA3 measurement system for speaker development during the German in-house development as well as for QC reporting for most production lines at the factory. The results of LPM and LSI measurements are the basis for evaluating and verifying further development enabling to offer perfectly working products in any practical application.
Continuous and advanced trainings for development employees ensure the highest possible qualification.

KLIPPEL® is a registered trademark of KLIPPEL GmbH

Voice coil diameter (mm / inch) 75 / 3”
Impedance (Ohm) 2 x 2
Re (Ohm) 4.02 (serial)
FS (Hz) 35.2
Qms 9.05
Qes 0.57
Qts 0.54
Le (mH) 2.73
Vas (Liter / cu.ft.) 28 / 0.99
MMS gr 513.65
Xmax (mm / inch) 62 / 2.44
SPL (1w/1m) 85
BL (Tesla – m) 28.29
Sd (cm²) 706.86
Power handling (Watts RMS/SPL) 2500 / 4000
Empfohlene Verstärkerleistung / Recommended amplifier power
2000 – 3000 WRMS @4 ohms (1 ohm)
