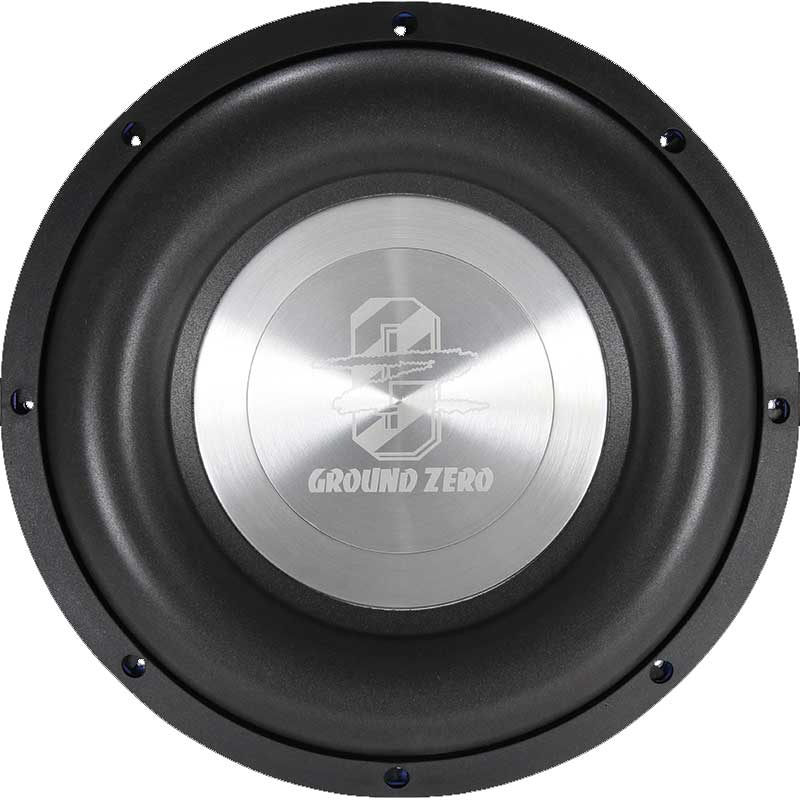

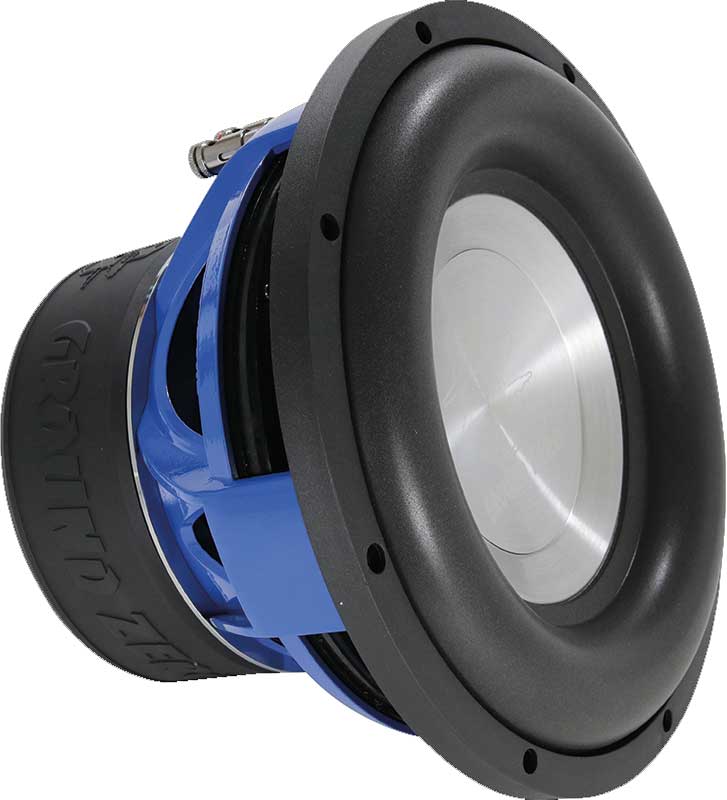

GZNW 12X-D2 3500 Watt 2x2Ω 60-90 liter

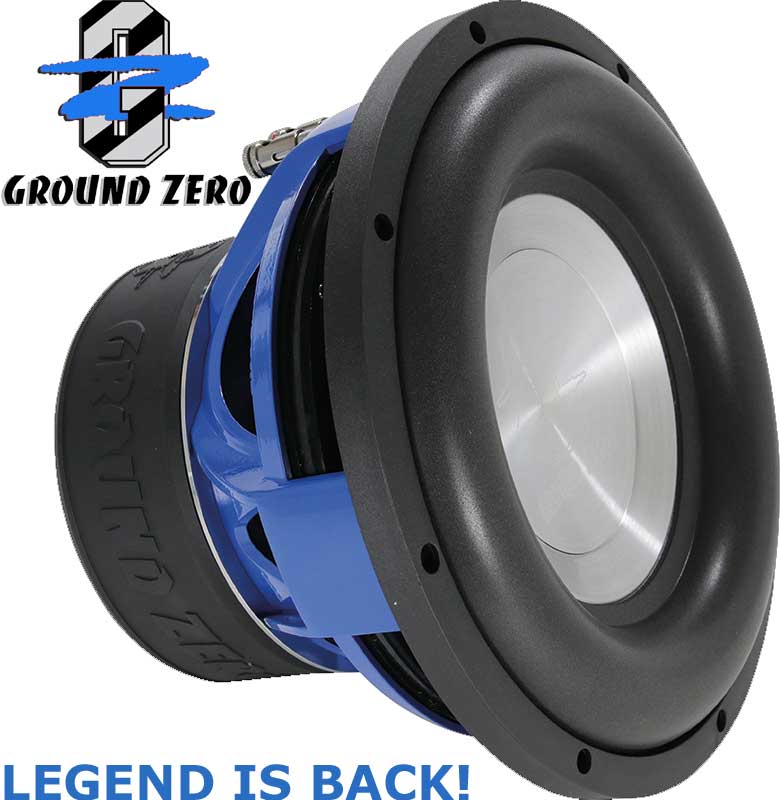

With GZNW 12X-D2 Ground Zero resurrects an old legend!

Combining the looks of the legendary blue GZNW 12X with modern subwoofer technology and years of experience, Ground Zero creates the long awaited successor.

Features:
- High performance long excursion subwoofer
- Klippel optimized
- Aluminum cone
- High-roll surround

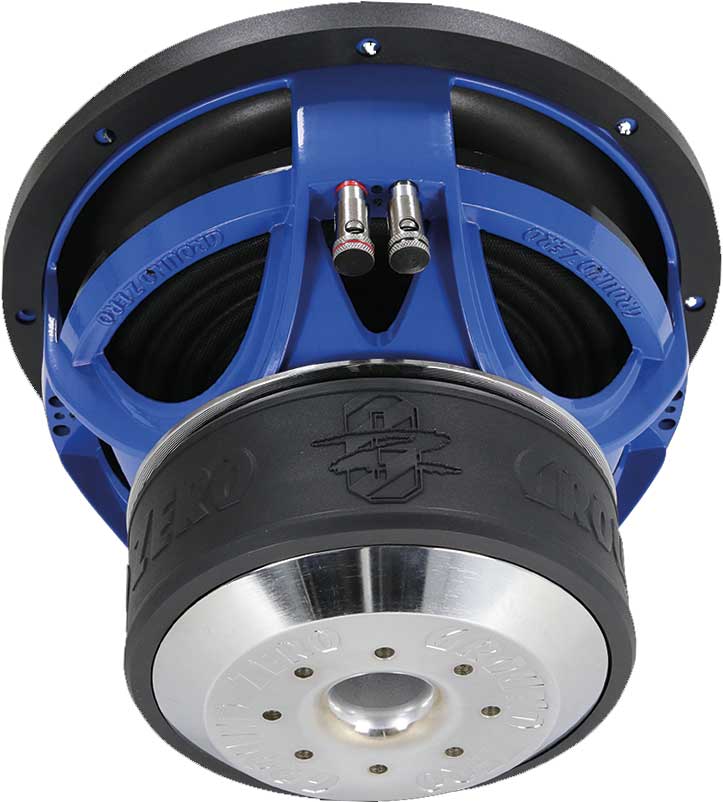

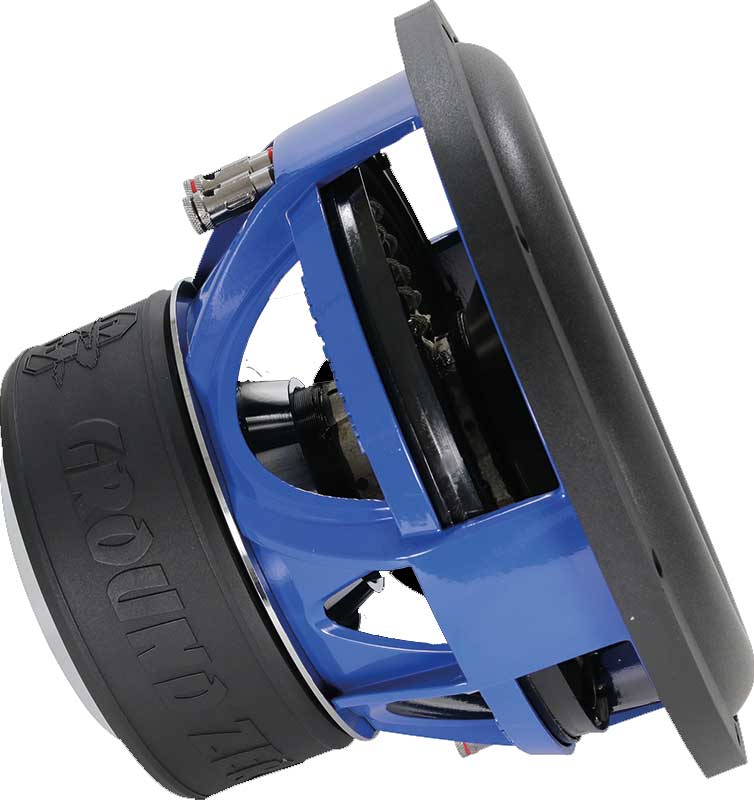

- Solid blue aluminum cast basket
- 75mm / 3″ 4-layer CCA round wire voice coil
- 4-layer polycotton spider
- Aluminum dust cap

Mer info
Bruksanvisning

Verified with KLIPPEL®
Ground Zero is using the worldwide accepted KLIPPEL® R&D Analyzer KA3 measurement system for speaker development during the German in-house development as well as for QC reporting for most production lines at the factory. The results of LPM and LSI measurements are the basis for evaluating and verifying further development enabling to offer perfectly working products in any practical application.
Continuous and advanced trainings for development employees ensure the highest possible qualification.

KLIPPEL® is a registered trademark of KLIPPEL GmbH

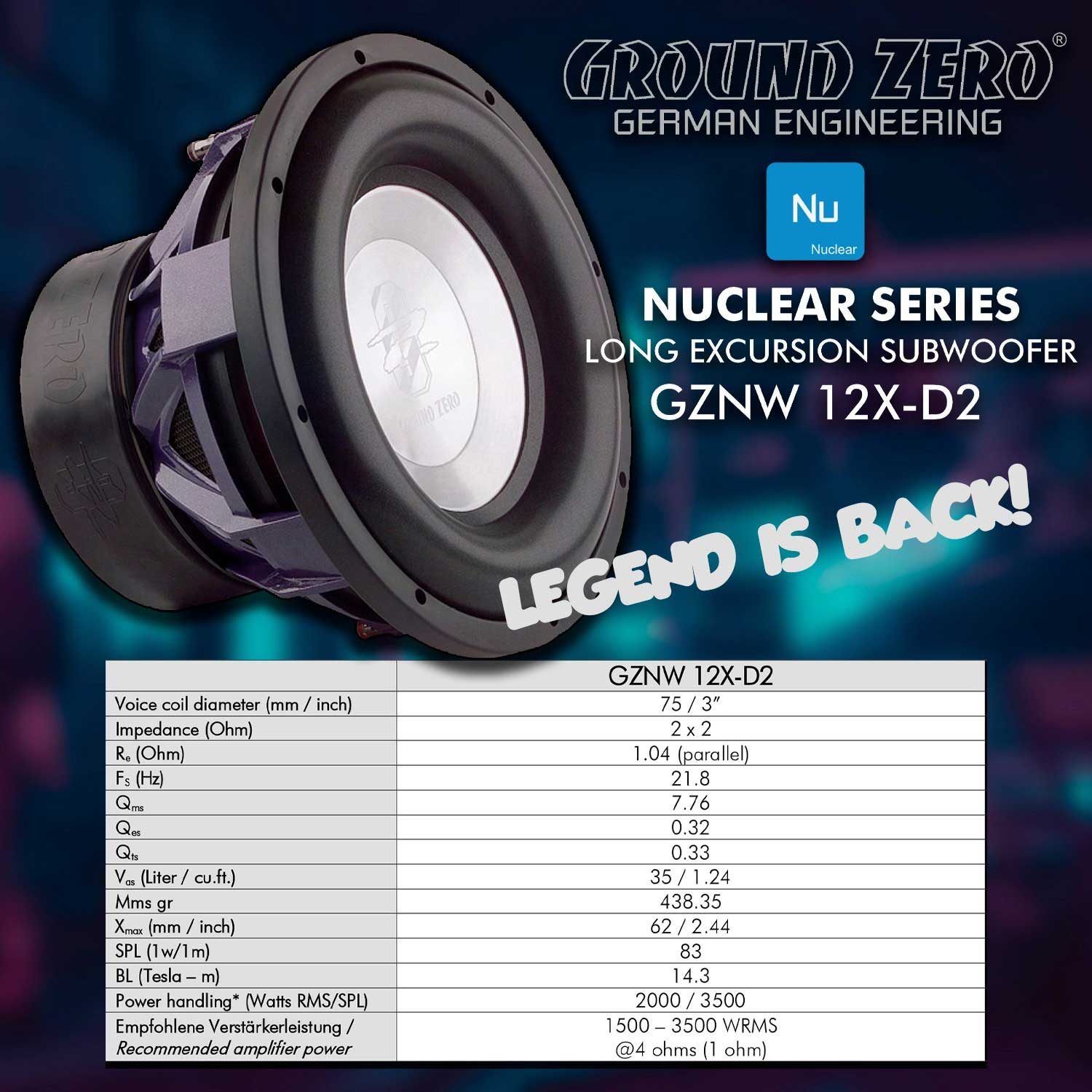

Voice coil diameter (mm / inch) 75 / 3”
Impedance (Ohm) 2 x 2
Re (Ohm) 1.04 (parallel)
FS (Hz) 21.8
Qms 7.76
Qes 0.32
Qts 0.33
Vas (Liter / cu.ft.) 35 / 1.24
Mms gr 438.35
Xmax (mm / inch) 62 / 2.44
SPL (1w/1m) 83
BL (Tesla – m) 14.3
Power handling* (Watts RMS/SPL) 2000 / 3500

Recommended amplifier power
1500 – 3500 WRMS @4 ohms (1 ohm)

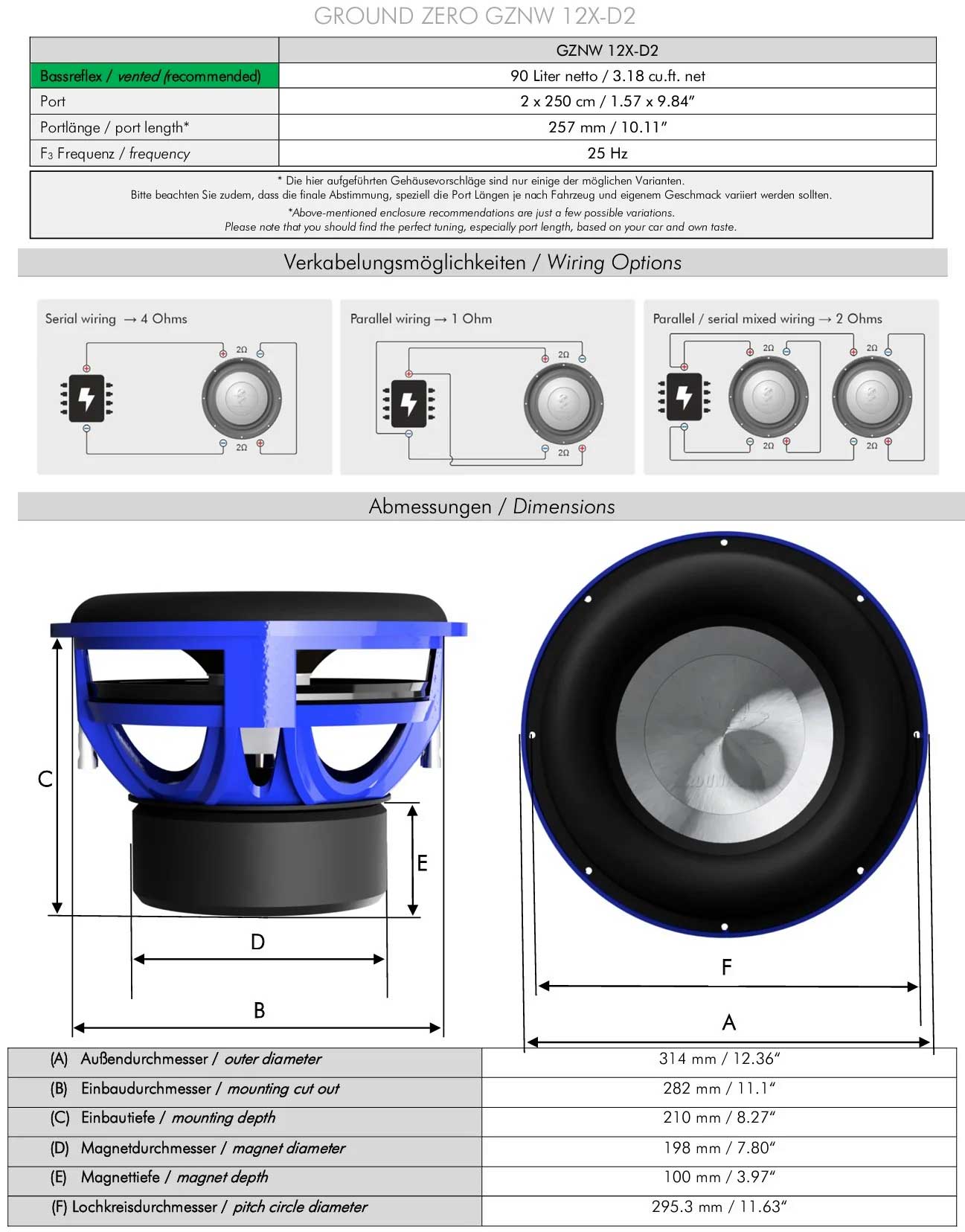

Recommended enclosure / Suositeltu kotelo: 60-90 liter netto
Port 2 x 250 cm² / 1.57 x 9.84”
Port length* 257 mm / 10.11”
Frequency 25 Hz
Vikt 21 Kg
