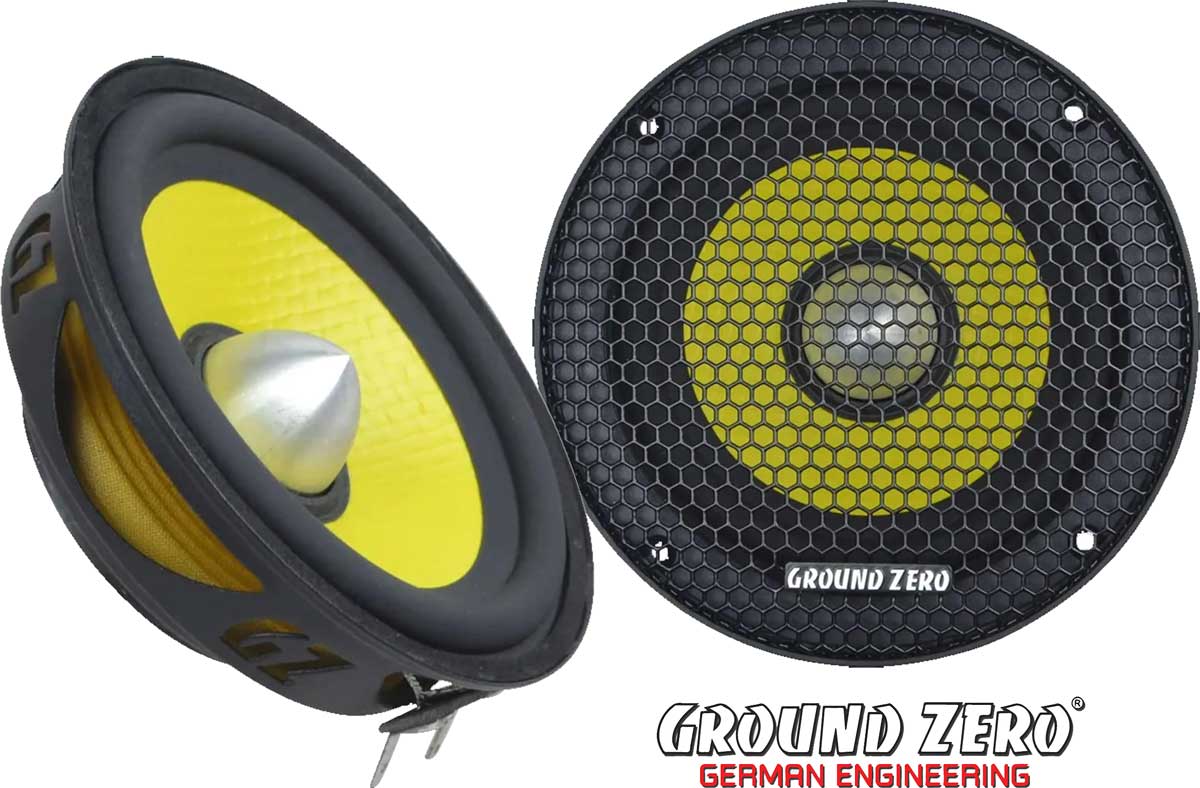

GZNT100NEO 4"mellanregister Neodymium magnet

GZNT100NEO 4"mellanregister Neodymium magnet. 40 Watt RMS, 60 Watt Max. Monteringsdjup 32 mm. Resonansfri svart stålkorgkorg. Kippel optimerad. Gummiupphängning med lång livslängd och konstanta ljudegenskaper.Levereras med snygga galler.

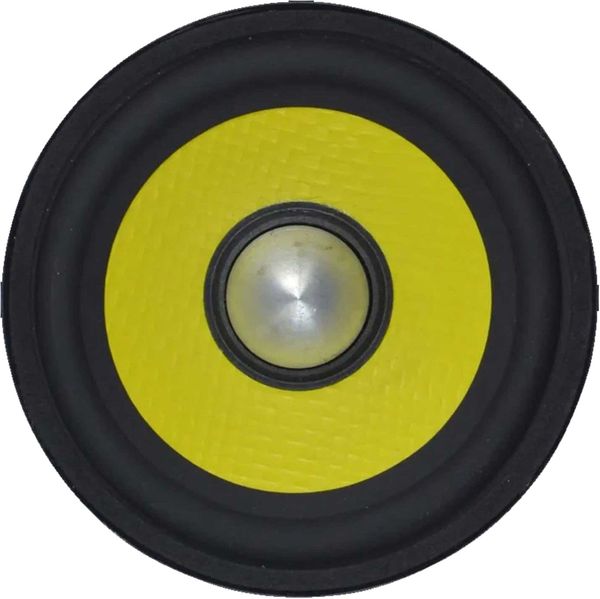

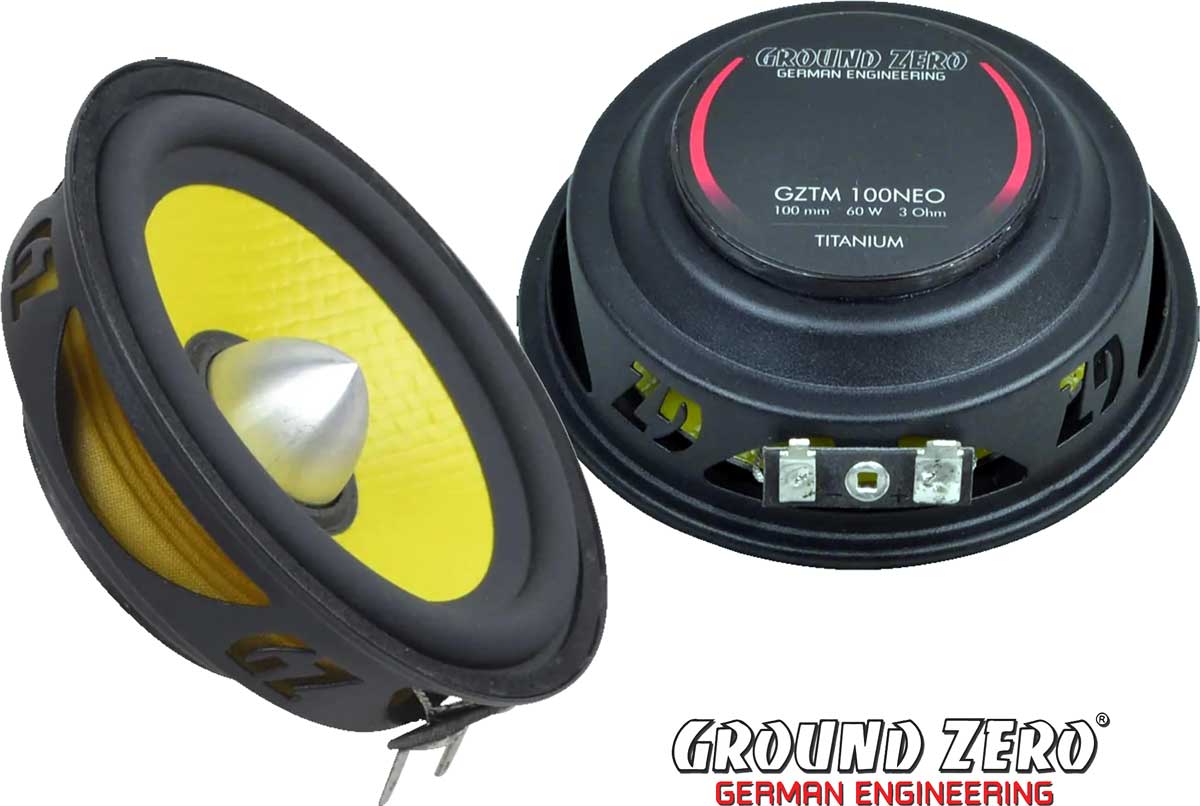

100 mm / 4″ midrange speaker with neodymium motor and HQPP cone with 3D structure
100 mm / 4″ midrange speaker
25 mm / 1″ CCA voice coil

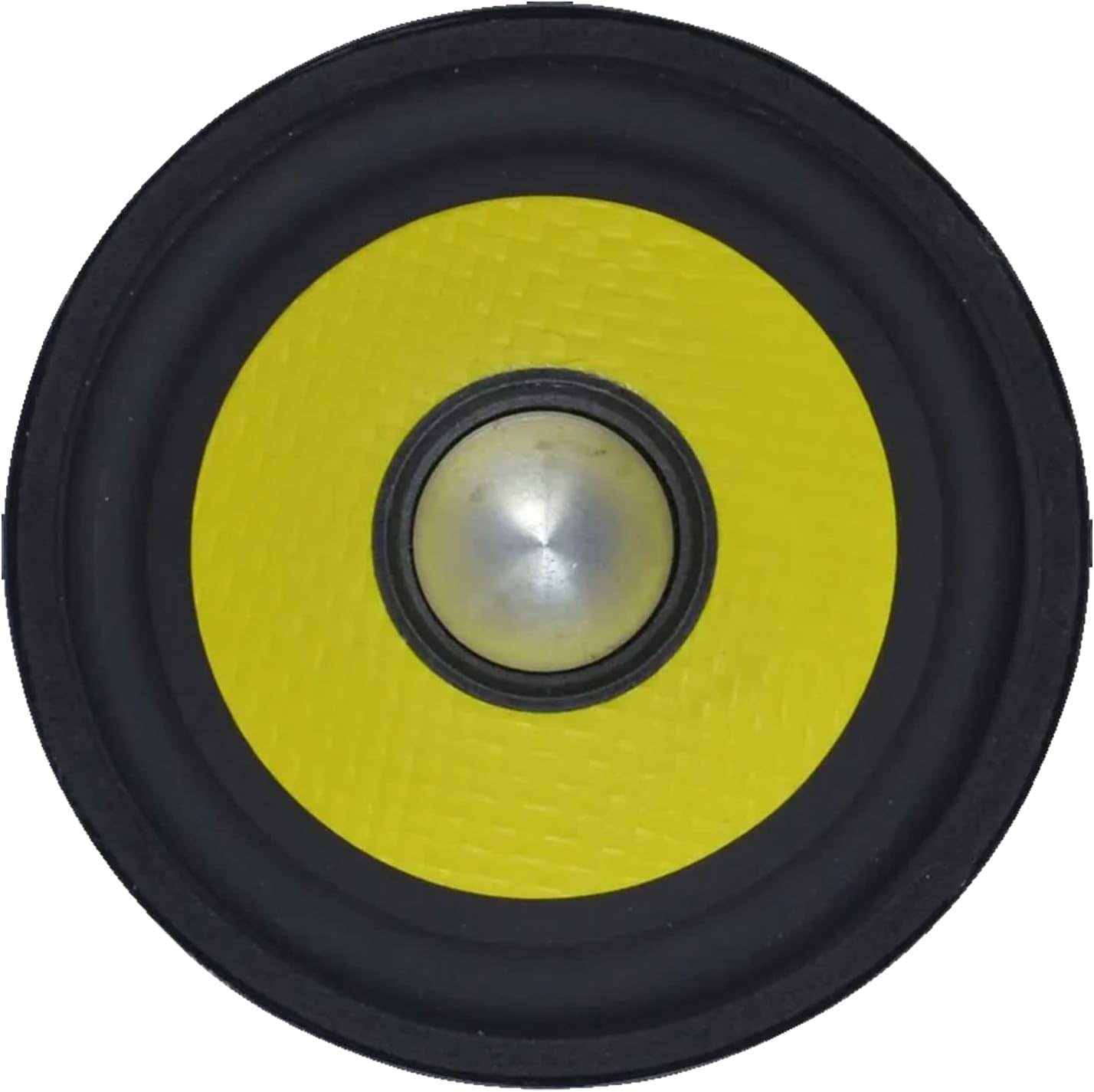

HQPP cone with 3D structure
Neodymium motor

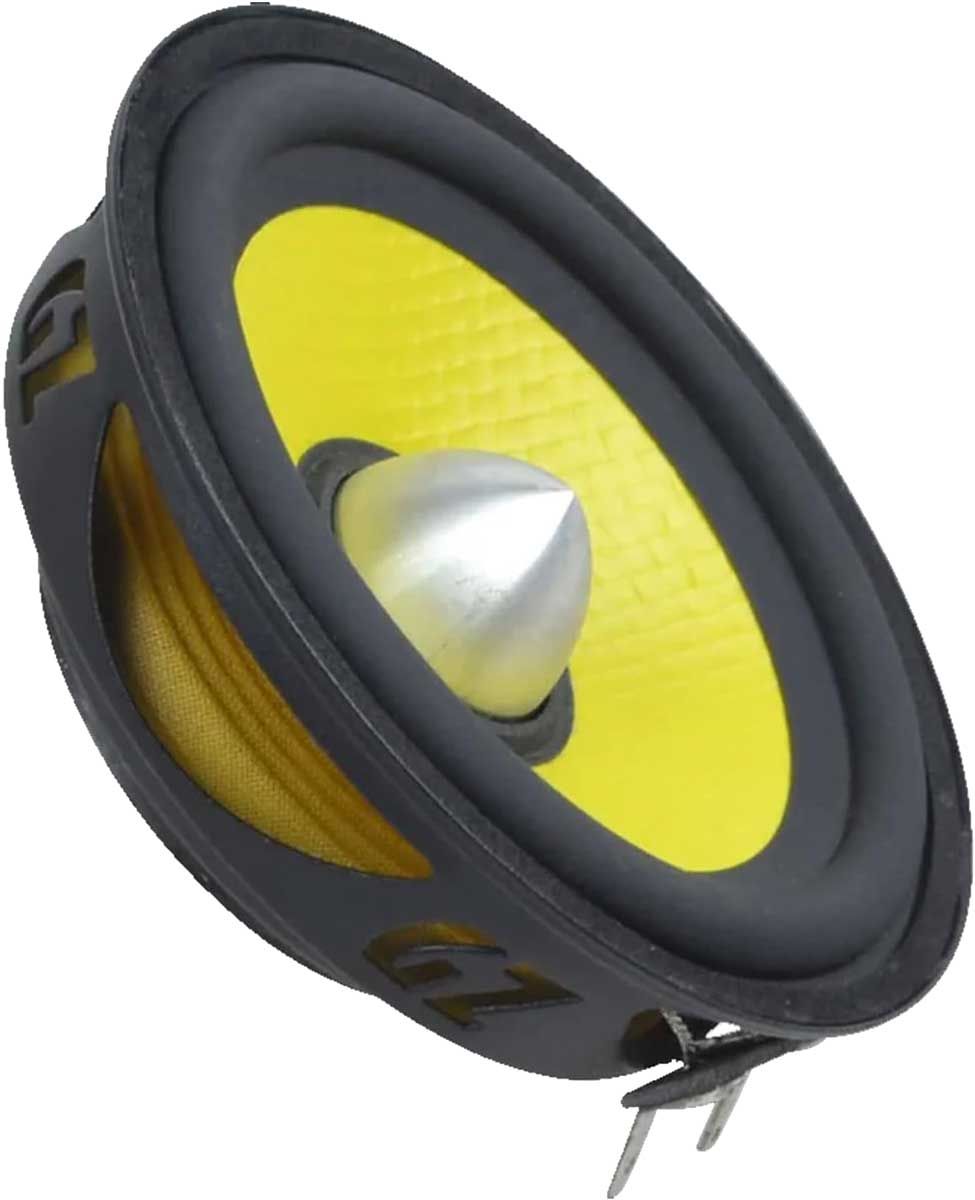

Resonance free steel basket

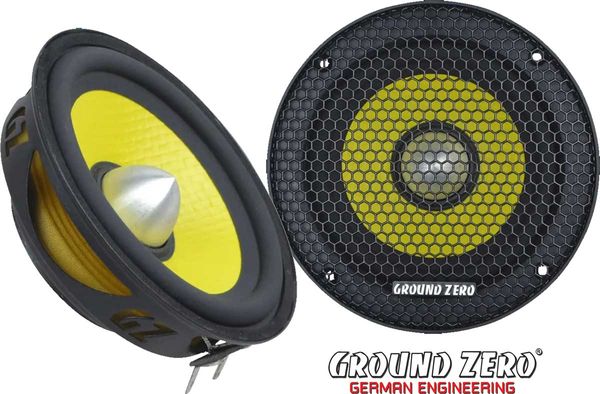

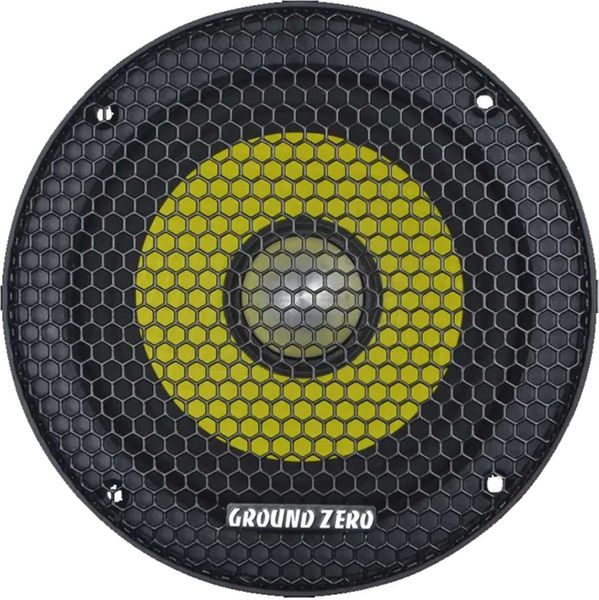

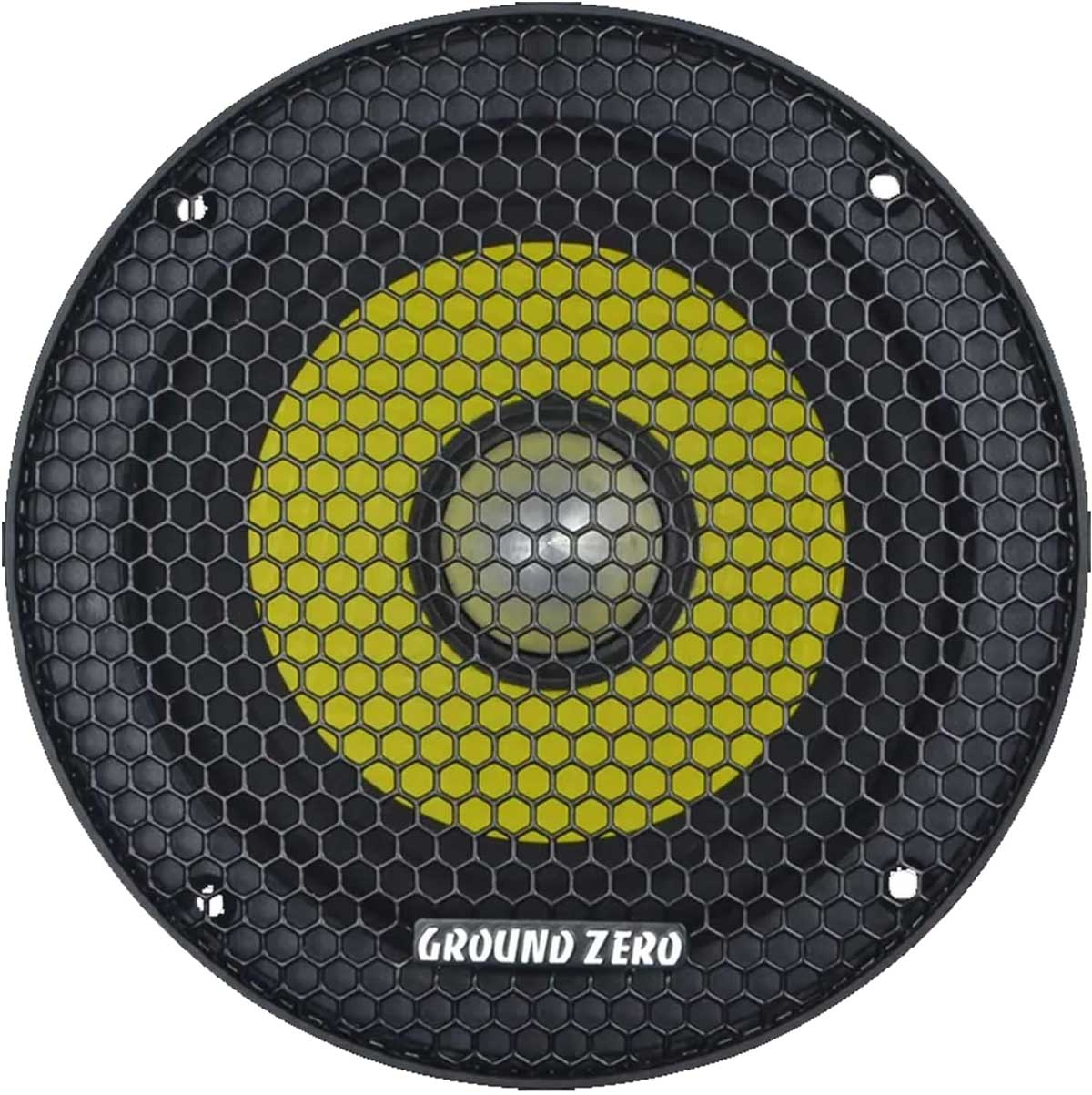

Incl. protection grill

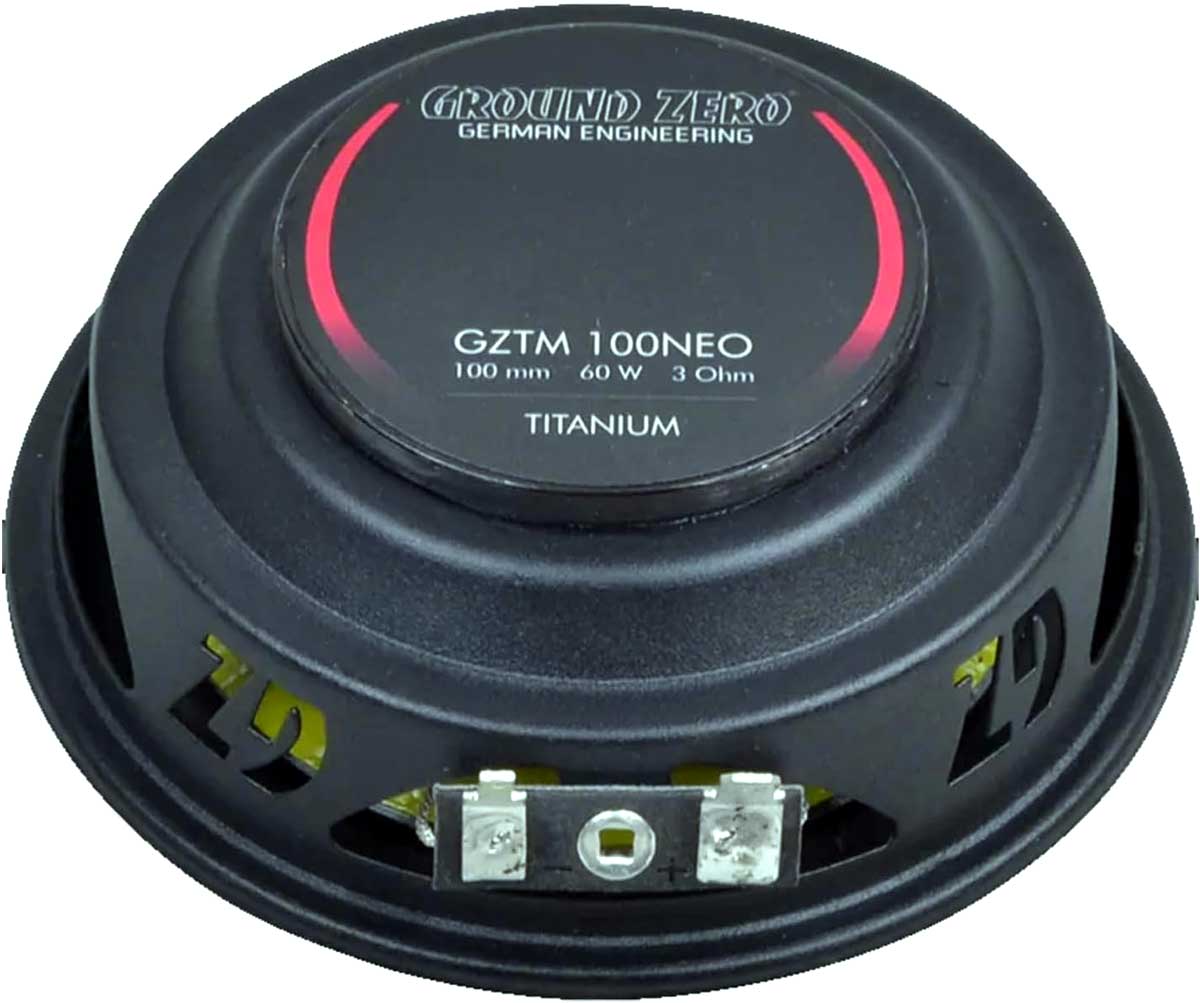

Soldering terminal
1 pair / package

Mer info
Manual Engelska/Tyska

Verified with KLIPPEL®
 Ground Zero is using the worldwide accepted KLIPPEL® R&D Analyzer KA3 measurement system for speaker development during the German in-house development as well as for QC reporting for most production lines at the factory. The results of LPM and LSI measurements are the basis for evaluating and verifying further development enabling to offer perfectly working products in any practical application.
 Continuous and advanced trainings for development employees ensure the highest possible qualification.

 KLIPPEL® is a registered trademark of KLIPPEL GmbH

Model Midrange speaker
Diameter 100 mm / 3.94″
Power handling (RMS/max.) 40 / 60 Watts
Impedance 3 ohms
Efficiency 84 dB
Frequency Response 250 Hz – 7 kHz
Cone HQPP cone with 3D structure
Magnetmaterial Neodymium
Mounting Ø 94 mm / 3.70″
Mounting depth 32 mm / 1.26″
Resonance frequency (Fs) 128 Hz
Crossover frequency 400 / 6000 Hz (Recommended)
