Pris

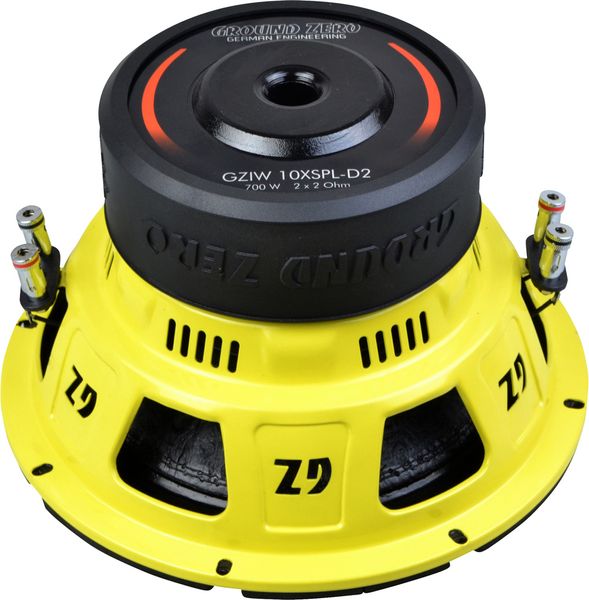

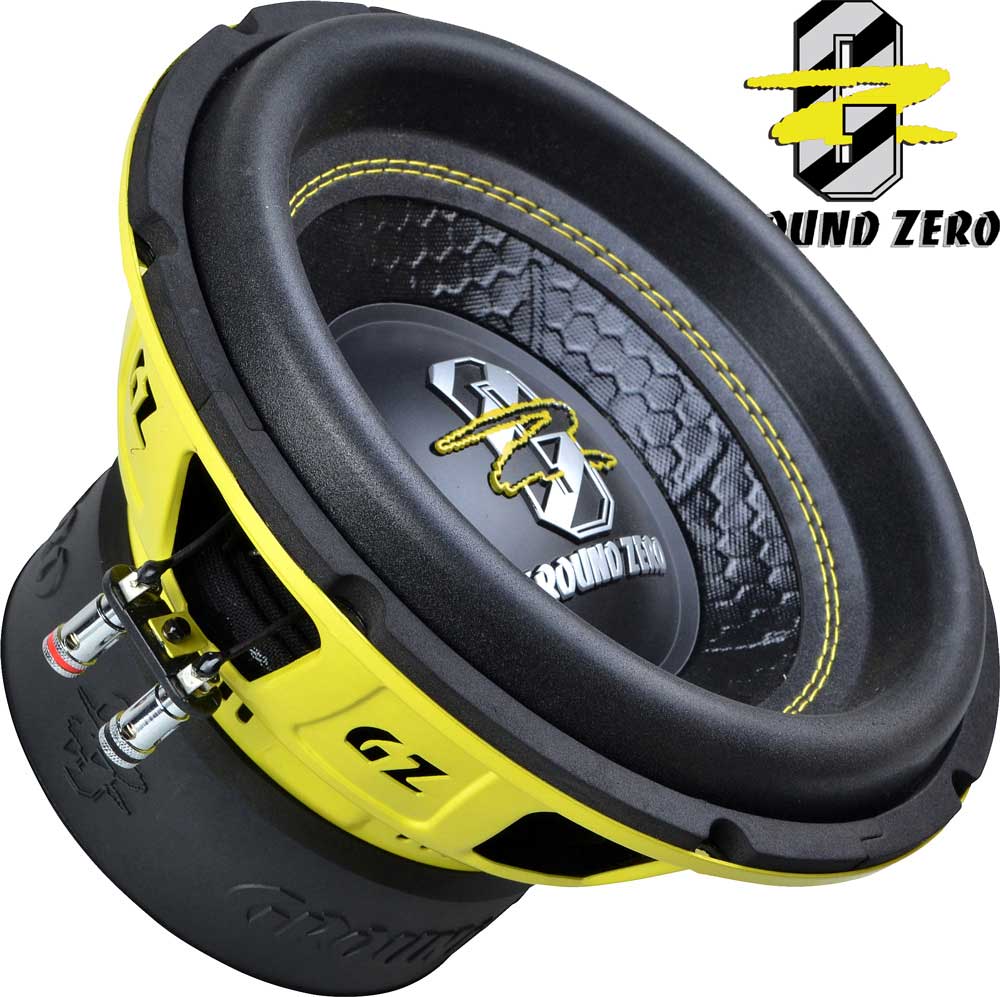

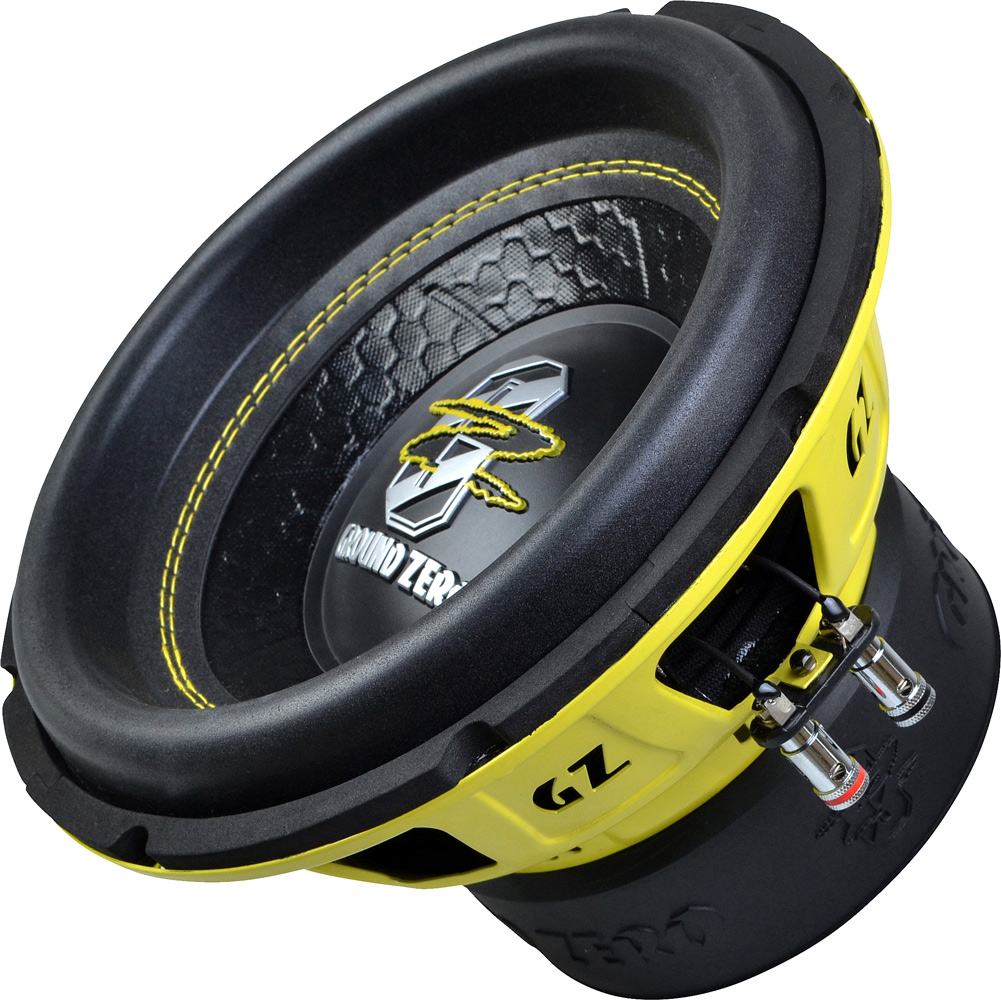

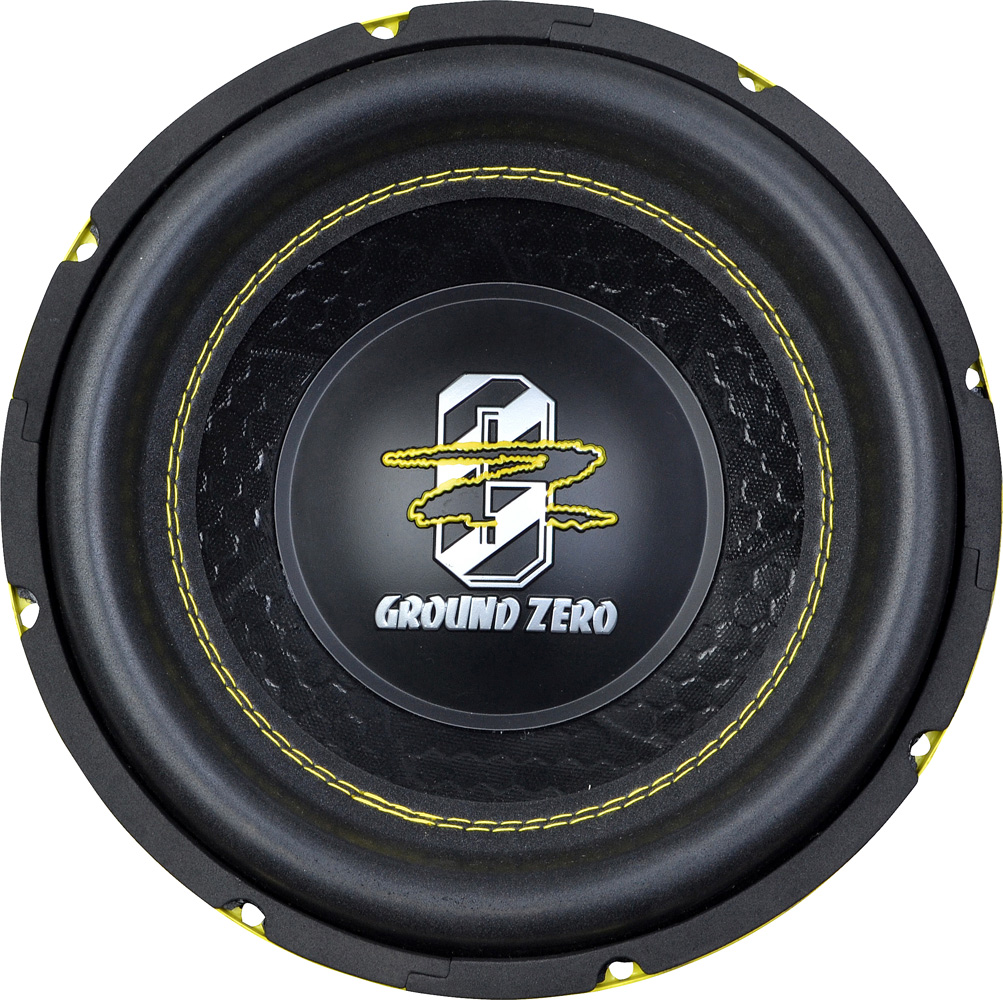

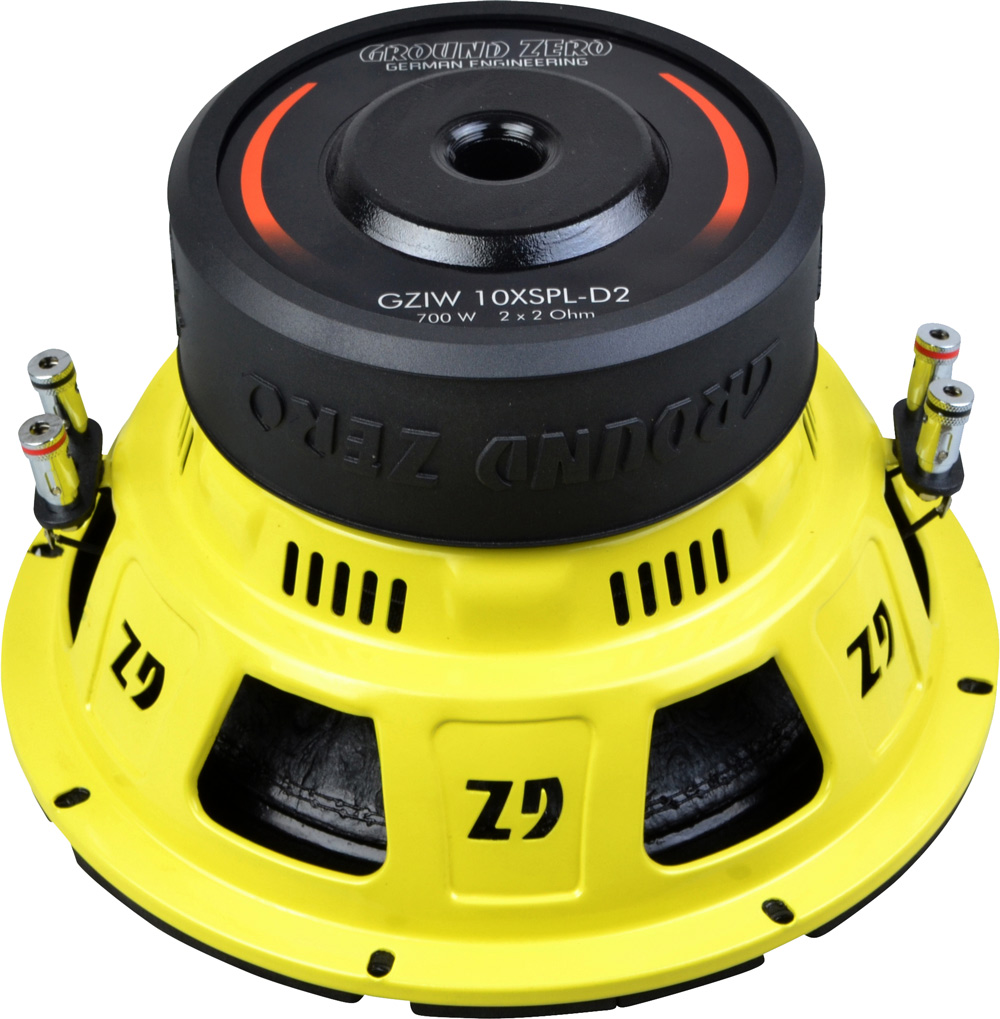

Ground Zero Iridium GZIW 10xSPL-D2 10" subbas. 700 W SPL, 500 W RMS. Dubbla talsoilar 2+2Ω. Basreflex 33 liter. 2,5" talspole. Klippel® optimized. Pris för 1 styck
| Artikelnr: | GZIW10XSPLD2 |
| Standardlager: | Lev 7-10 dagar |
Varumärke
| Kvalitet och SPL Ground Zero Iridium SPL bas har välförtjänt fått ett grundmurat rycket för sina SPL egenskaper. Klippel® optimized. Förstärkt Cellulosa membran. Att en bas i detta prisläge har dessa prestanda är imponerande. Dubbla talspolar 2+2 Ohm kan kopplas 1, 2+2 eller 4 Ohm. Dubbla spiders. Extra jobb har lagts på att kyla den 2,5" stora talspolen. High-Roll sandwich surround. - High power 10″ SPL-subwoofer - Klippel optimized - Reinforced paper cone with 3D honeycomb structure - 2.5″ copper voice coil - High-roll sandwich surround - Progressive 2-layer spider - Push terminals |
|
| Mer info | |
| Bruksanvisning Språk: Engelska |
|
Verified with KLIPPEL®
Ground Zero is using the worldwide accepted KLIPPEL® R&D Analyzer KA3 measurement system for speaker development during the German in-house development as well as for QC reporting for most production lines at the factory. The results of LPM and LSI measurements are the basis for evaluating and verifying further development enabling to offer perfectly working products in any practical application.
Continuous and advanced trainings for development employees ensure the highest possible qualification.
KLIPPEL® is a registered trademark of KLIPPEL GmbH
Voice coil: 63mm / 2.5″
Impedance: 2x2 Ohm
Re: 3.94 Ohm
Fs: 36.2 Hz
Qms: 10.5
Qes: 0.65
Qts: 0.61
Vas: 15.4l / 0.54 cu.ft.
Le: 2.96 mH
Mms: 205.4 gr
Bl 17.0
Xmax: 32mm / 1.26″
Efficienty (SPL 1w/1m): 84dB
Power handling: 700w
Rec. amplifier power: 400-700w
Outer diameter: 257mm / 10.12″
Mounting cut out: 230mm / 9.06″
Mounting depht: 147mm / 5.79″
Vikt; 6,71 Kg
Rek låda: Basreflex 33 Liter, basreflex rör diameter 4" x längd 19cm (39 HZ)
Rek låda: Sluten 25 liter
