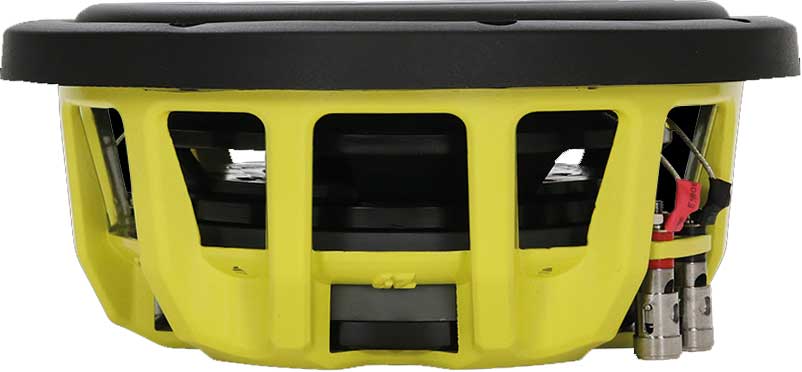

GZ Hydrogen GZHW 8SPL-D2 FLAT 800 Watt 2x2Ω 12-20 liter

Pris

Lägsta pris senaste 30 dagar 2 490 kr

8" subbas. 500 Watt RMS, 800 Watt SPL. Dubbla talspolar 2x2Ω. Flat 80 mm monteringsdjup. Basreflex låda 12-20 liter. Lämplig förstärkare 350-800 Watt RMS. Klippel® optimized. Pris för 1 styck

Artikelnr:	GZHW8SPLD2FLAT
Standardlager:	Lev 7-10 dagar

Varumärke

Mer information

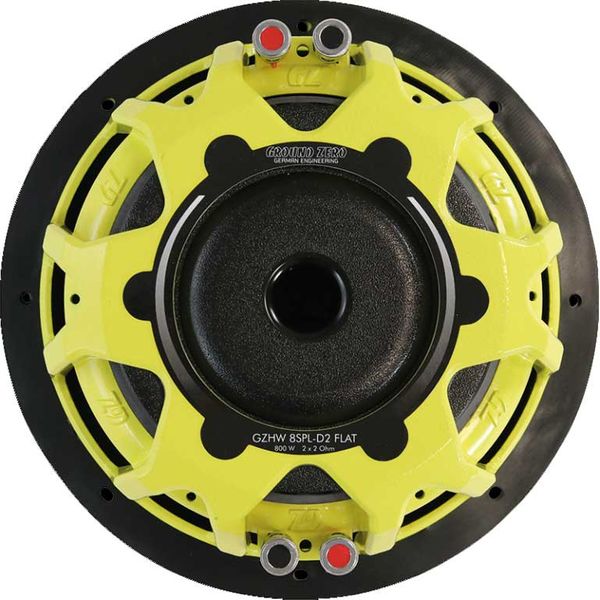

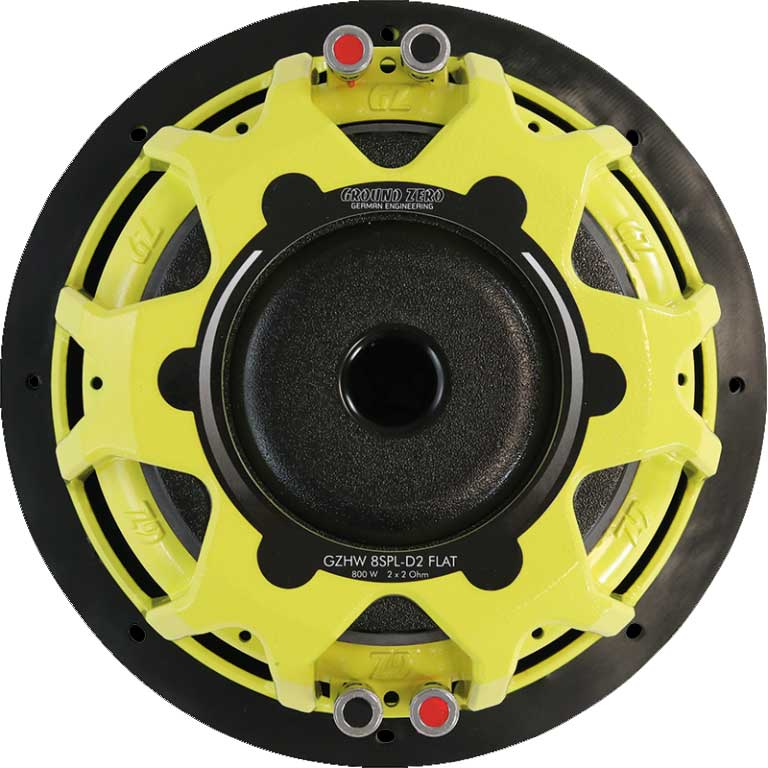

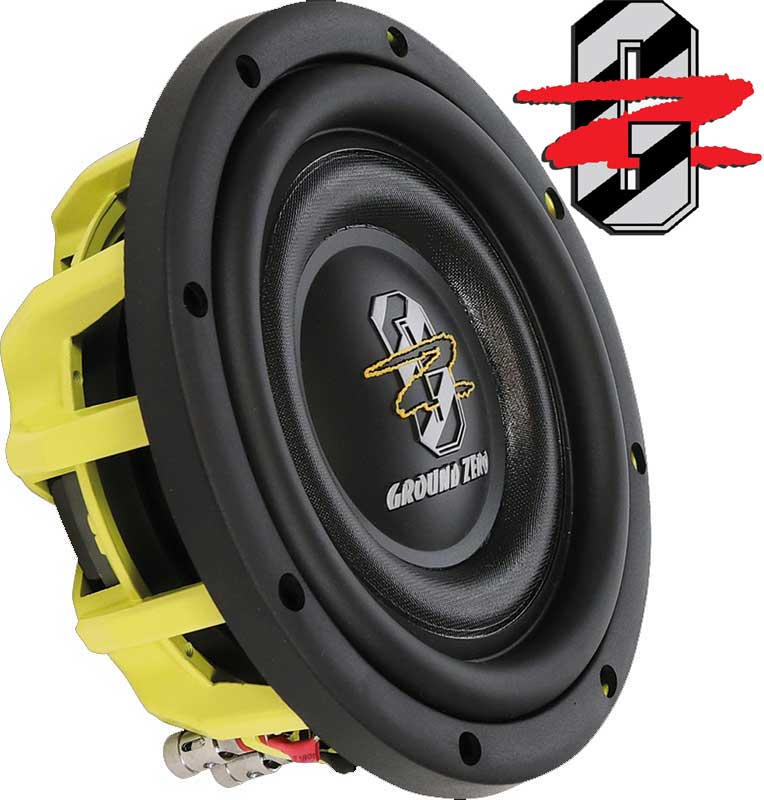

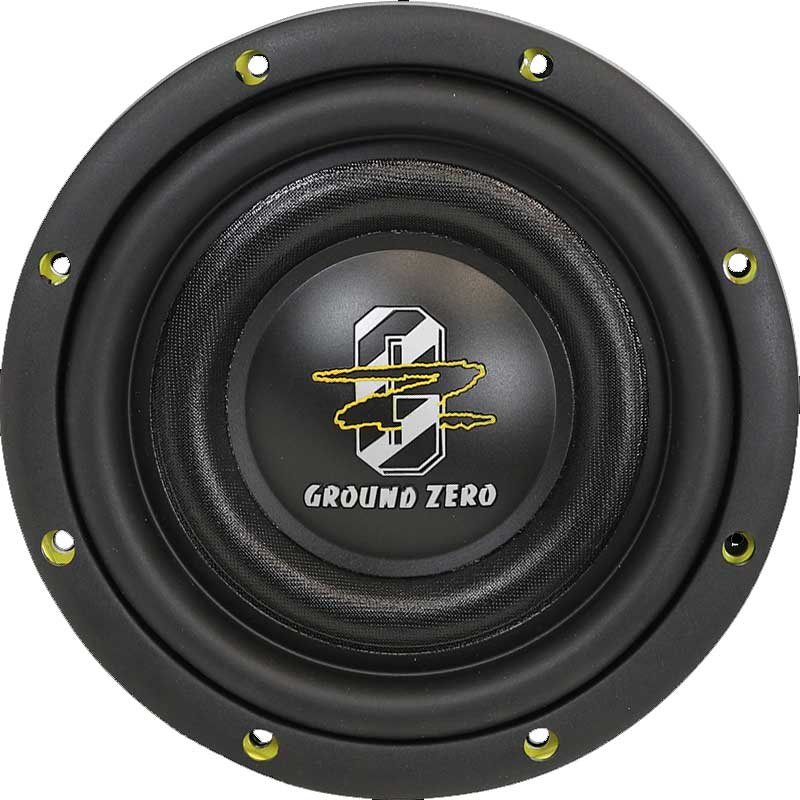

The brand-new HYDROGEN series GZHW 8SPL-D2 FLAT subwoofer solves the problem of cramped installation space requiring a shallow enclosure for the
subwoofer.

Equipped with a powerful motor and a huge voice coil known from the existing subwoofers of the Hydrogen SPL series, this moden handles power input of up to 800 Watts SPL

8″ high quality flat SPL subwoofer
Klippel® optimized
Sandwich paper cone
Durable U-shape rubber surround
Solid aluminum cast basket
50 mm / 2″ copper voice coil
4-layer copper voice coil
Push terminal

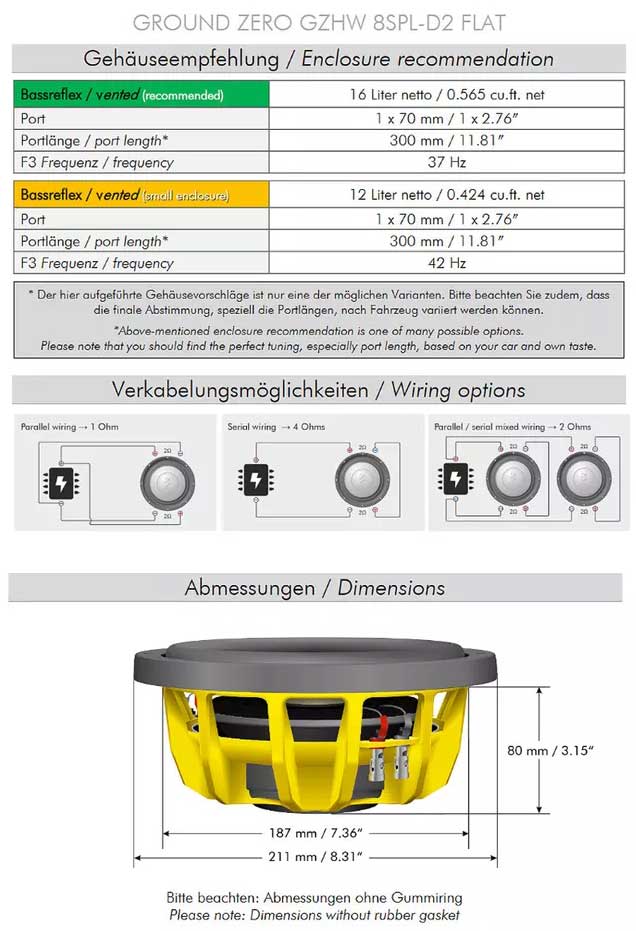

Enclosure recommendation:
Vented: 16 Liter netto
Port 1 x 70 mm / 1 x 2.76”
port length* 300 mm / 11.81”
frequency 37 Hz

Vented (small enclosure)
12 Liter netto / 0.424 cu.ft. net
Port 1 x 70 mm / 1 x 2.76” 300 mm / 11.81”
frequency 42 Hz

Mer info
Bruksanvisning

Verified with KLIPPEL®
Ground Zero is using the worldwide accepted KLIPPEL® R&D Analyzer KA3 measurement system for speaker development during the German in-house development as well as for QC reporting for most production lines at the factory. The results of LPM and LSI measurements are the basis for evaluating and verifying further development enabling to offer perfectly working products in any practical application.
Continuous and advanced trainings for development employees ensure the highest possible qualification.

KLIPPEL® is a registered trademark of KLIPPEL GmbH

Model: High-Quality Flat SPL Subwoofer
Diameter: 20 cm / 8″
Power handling (RMS/SPL): 500 / 800 Watts
Impedance: 2x 2Ω
Efficiency: 83 dB
Power recommendation: 350 – 800 Watts
Voice coil: 63 mm / 2.5″ Copper
Cone: Sandwich paper
Max. Excursion (Xmax): 24 mm / 0.94″
Mounting Ø: 187 mm / 7.36″

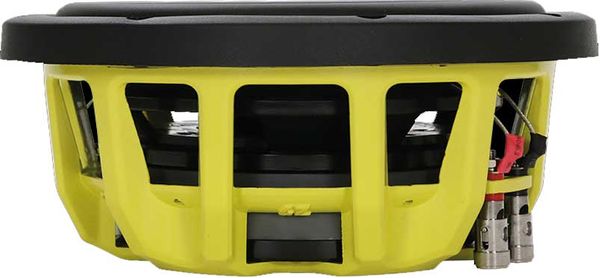

Mounting depth: 80 mm / 3.15″
Resonance frequency (Fs): 31.5 Hz
Overall quality (Qts): 0.41
Equiv. air volume (Vas): 14.2 L / 0.50 ft³
Vikt 4,48 Kg

Re (seriell / wired in serial ) 4.05Ω
Fs 31.5 Hz
Qms 6.36
Qes 0.44
Qts 0.41
Vas 14.2 L / 0.50 cu.ft.
Mms 115.7 gr
Xmax (p2p) 24 mm / 0.94"
Wirkungsgrad / efficiency 82.5 dB (1W/1m @ Re)
BL 14.6 Tm
Belastbarkeit / power handling 500 / 800 Watt / Watts (RMS/SPL)
Empf. Verstärkerleistung / Rec. amplifier power 350 – 800W RMS @4Ω (1Ω)
