DDLE-508.3A-D2
3 x 8″ Loaded Enclosure
New Resized Enclosure
500e series subwoofer
Full cover metal grill
0,7 eller 2,67Ω
1500 Wat RMS
4500 Watt MAX (kortvarigt)
With the new a-revision of the LE-500 series, the front panels of the enclosures are now made of plywood, and the enlosure is resized. Subwoofers have been upgraded to the e-series ( Subwoofer are 508e-D2 )
NOTE! The subwoofers and the enclosure come in separate packages. The enclosure packaging includes the necessary screws and speaker cables.

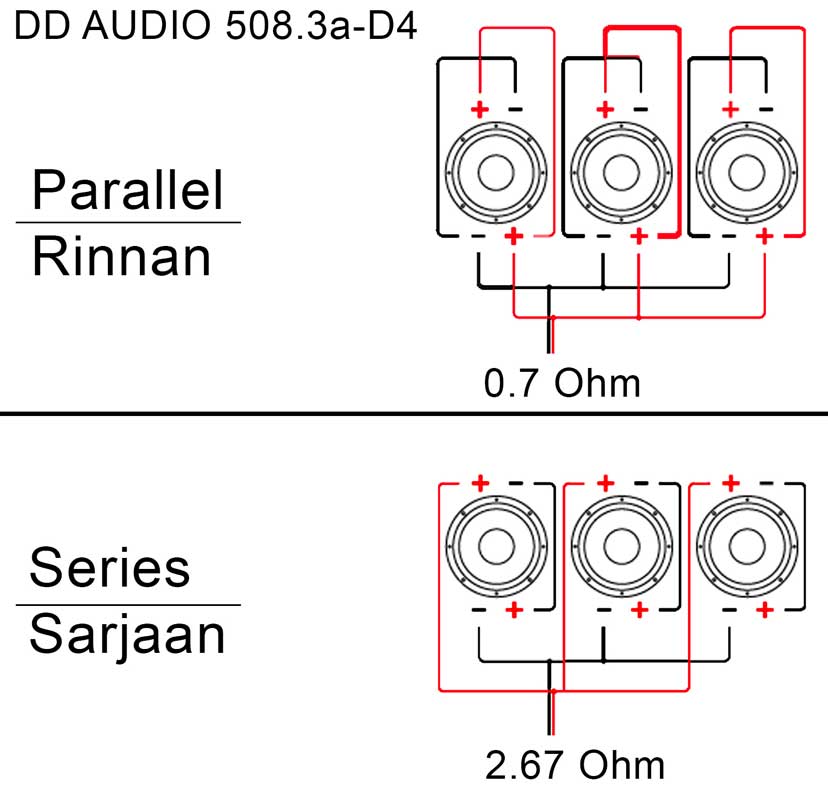

Connecting the two voice coils of each sub in series (+ to -) and the subs themselves in parallel will score the following impedance: 0,7 eller 2,67Ω
This new generation of DD enclosures gives unprecedented sound quality, output level, speaker protection and overall great looks. These loaded enclosures have tuning that allows the most demanding bass track drops to envelope the vehicle while transients are crisp and powerful, playing a bandwidth covering electronic lows to acoustic string instrumentals.

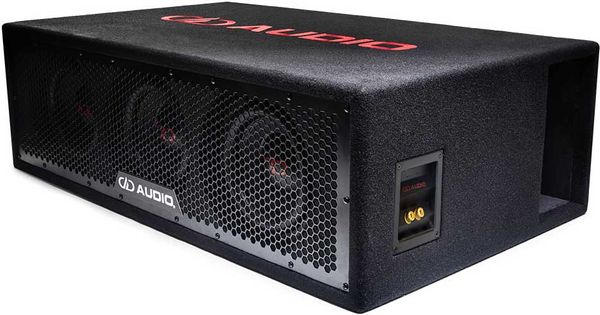

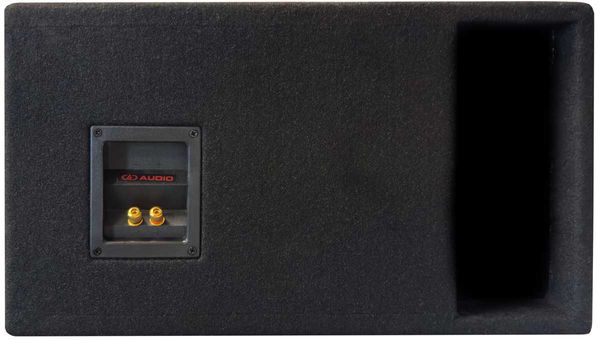

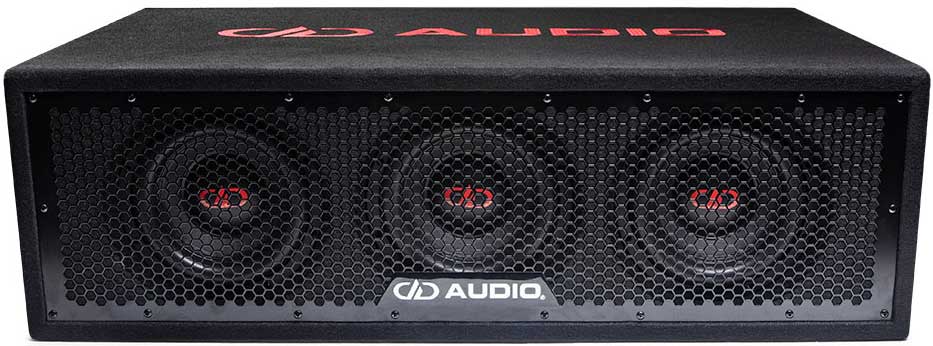

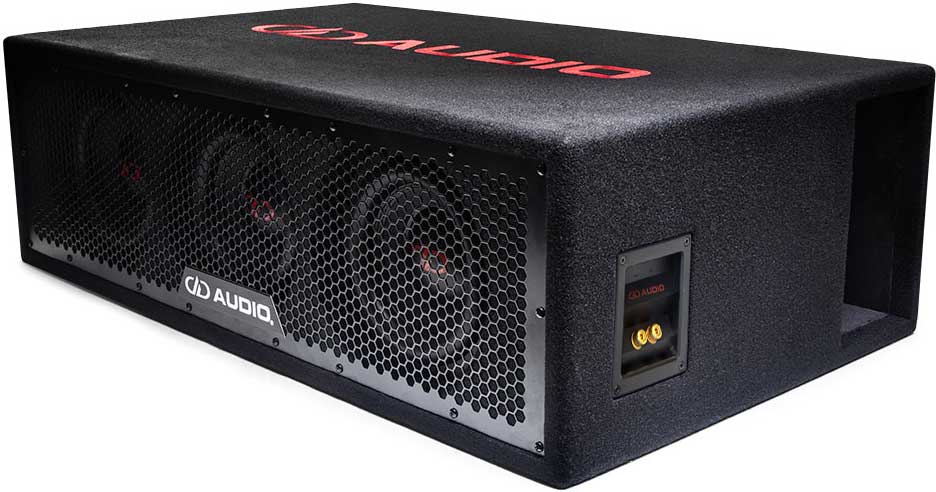

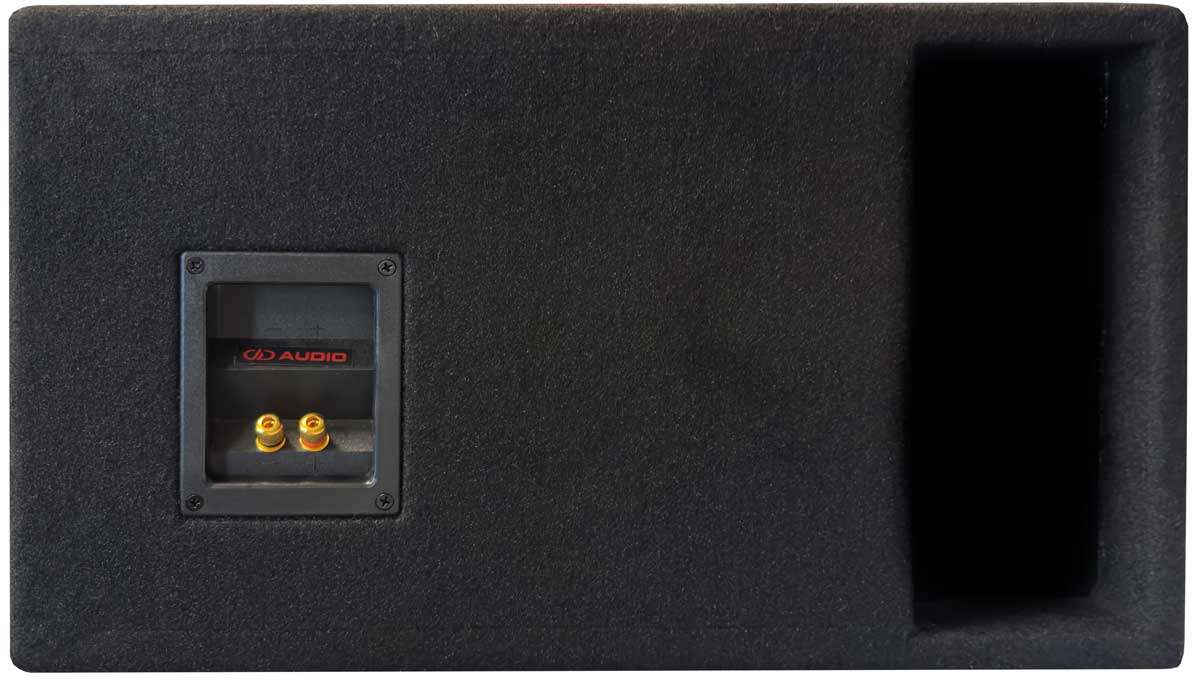

The new LE’s feature a full cover metal grill protecting your investment from cargo calamities. The large DD tuned rectangular port is side fired to provide optimal acoustic loading throughout the entire power band.
The LE-500 Series comes in 8 inch, 10 inch and 12 inch. The 8 inch drivers are available in box configurations containing one speaker or three, while the available box configurations for 12 inch drivers are one speaker or two. The 10 inch drivers are available in box configurations containing one speaker or three
